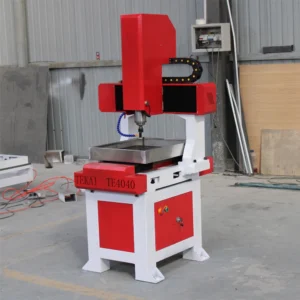

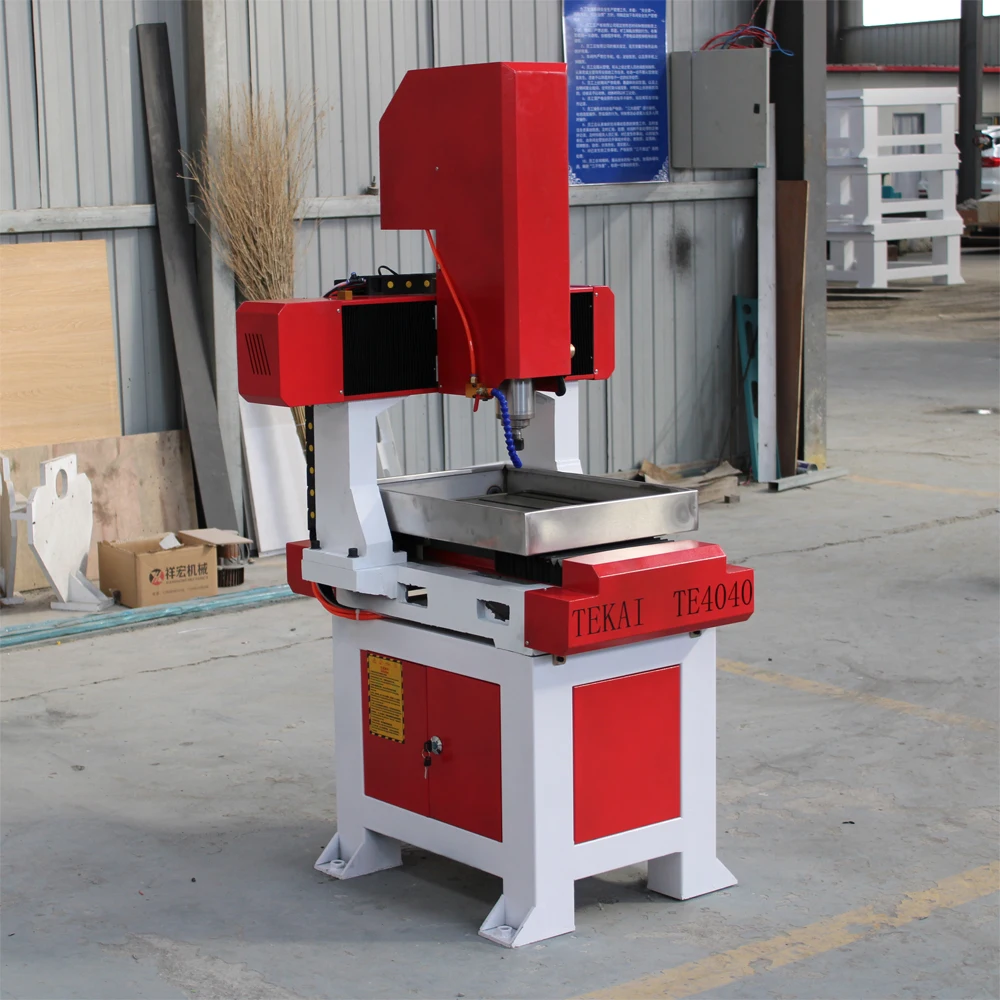

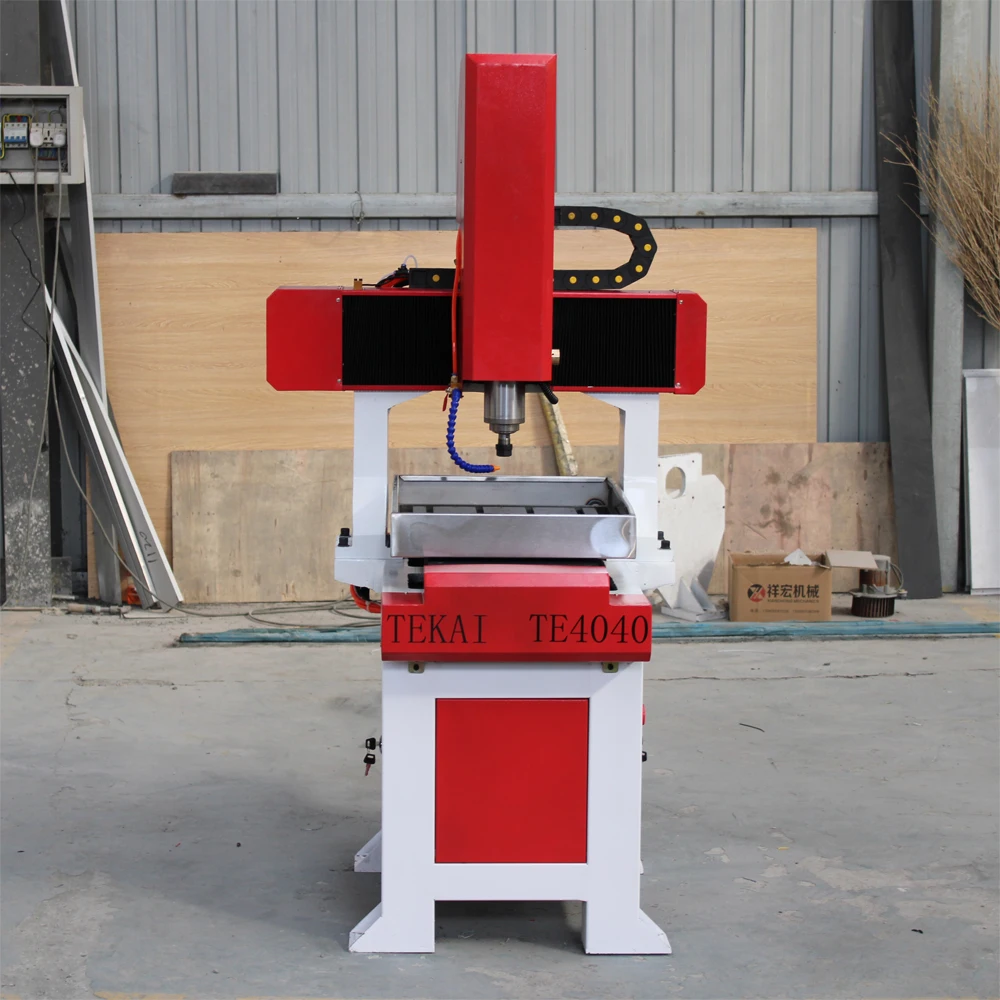

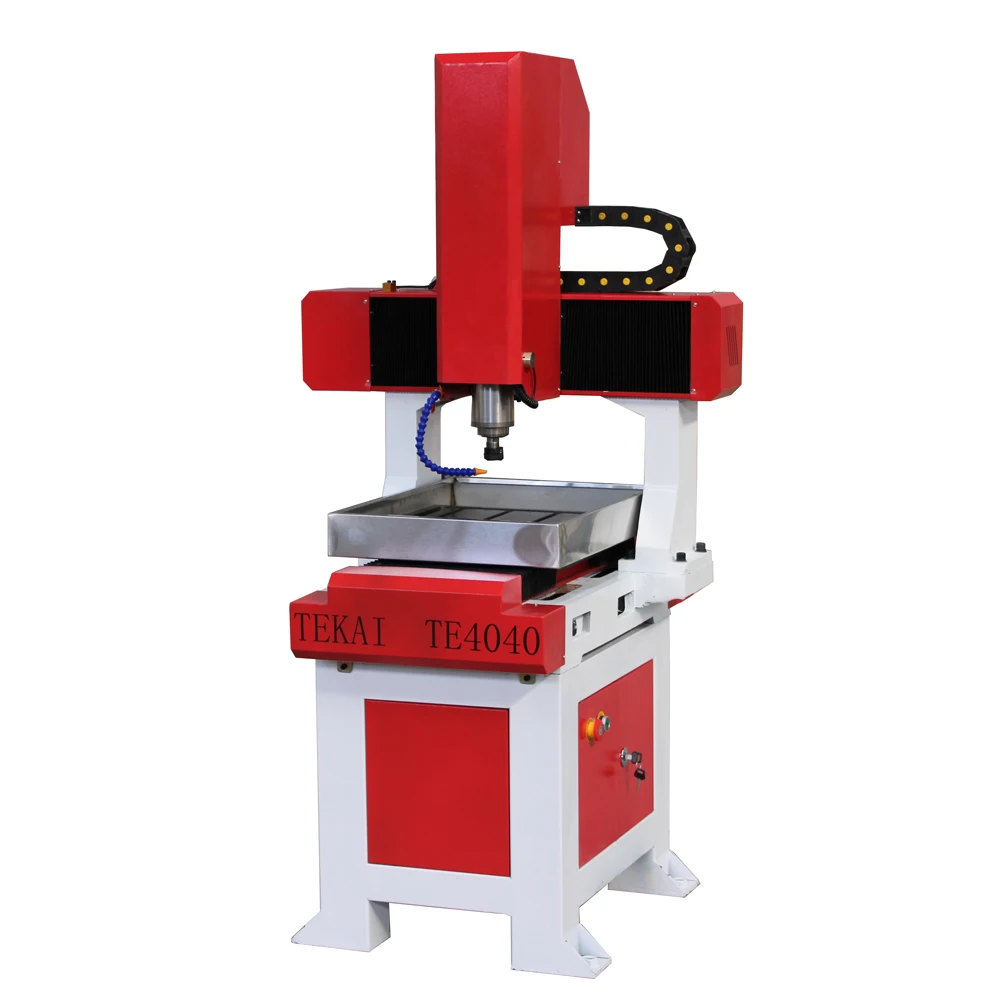

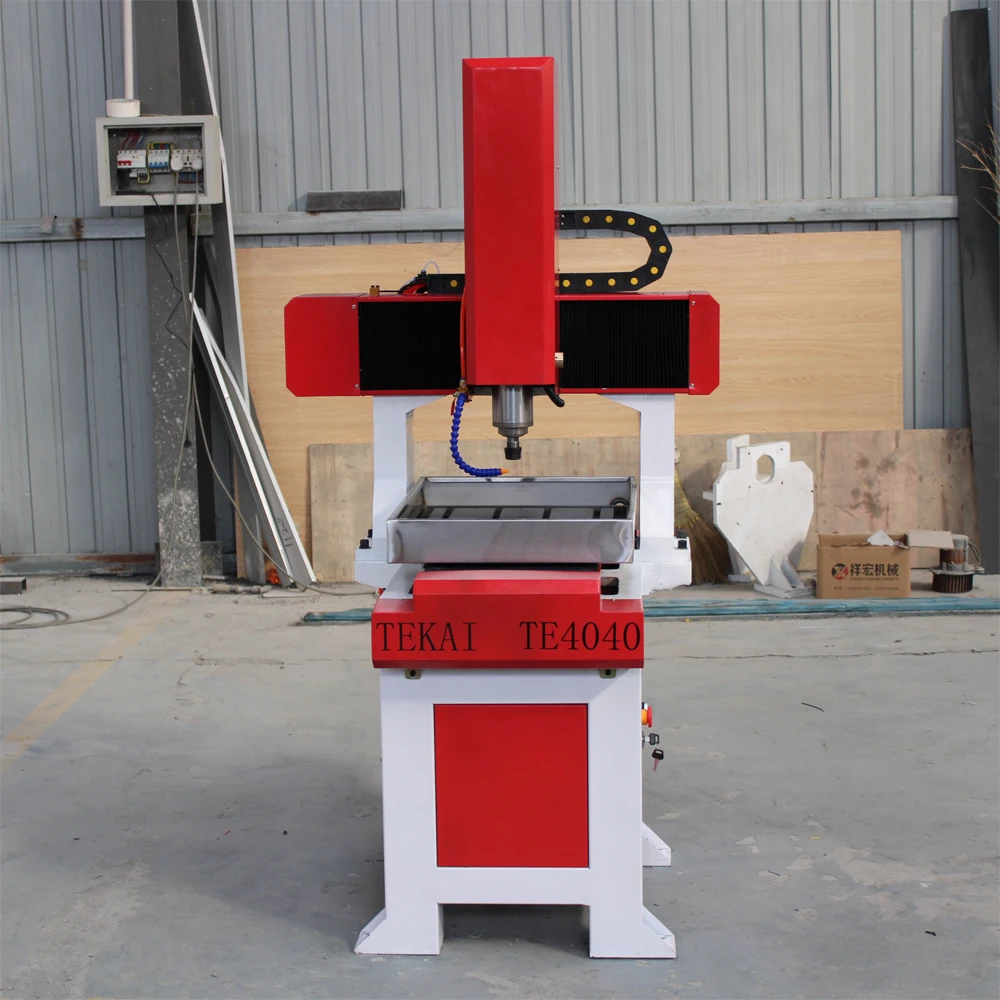

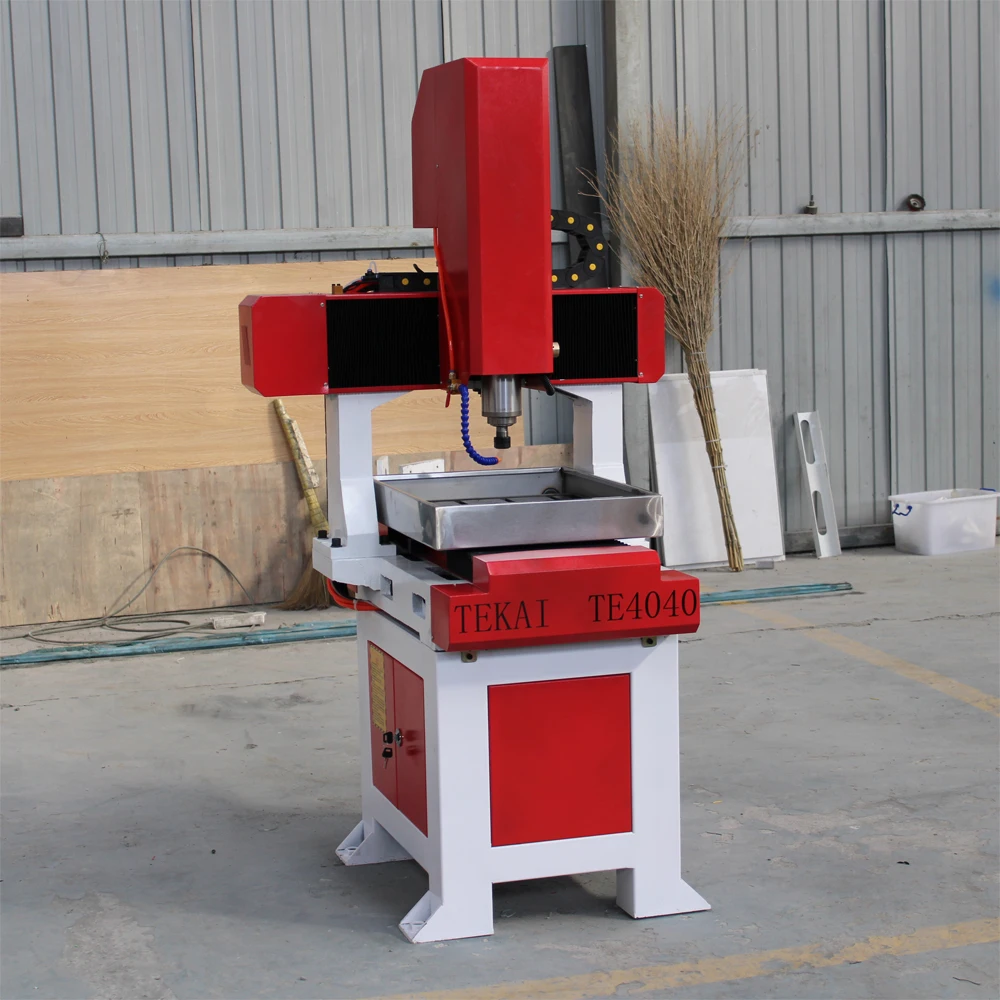

TE4040 Factory Price CNC Router 4 Axis CNC Milling Machine For Metal Aluminium Plate Cutting Machine
Original price was: 5,880.60€.4,573.80€Current price is: 4,573.80€. exc. 19% Vat
- 14 days Return and Refund - check our Return and Refund Policy
- Shipping Time: 7 - 10 Business Days Worldwide - check out our Shipping Policy
- Payment Options: Bank Transfer and Crypto
- For Questions: use our Livechat or Contact us Form
12 in stock
- Is Smart Device: YES
- Origin: Mainland China
- Model Number: TE4040
- Condition: New
- Brand Name: TEKAI
- CNC or Not: CNC
- Product name: TE4040 mould cnc router
- Working area: 400x400x200mm
- Moving style: Table moving
- Spindle: 1.5kw water coolinmg spindle
- Application: Soft metal
- Motor: Stepper motor
- Driver: Leadshine M860 driver
- Control system: Mach3
- Table surface: T-slot table
- Color: Customer needing
TE4040 Factory Price CNC Router 4 Axis CNC Milling Machine For Metal Aluminium Plate Cutting Machine
|
Model
|
TE4040
|
|
Working area
|
400X400X200mm
|
|
Table
|
T-slot table
|
|
Spindle
|
1.5kw water cooling spindle
|
|
Structure
|
Cast iron body
|
|
Motor
|
Step motor
|
|
Driver
|
Leadshine M860 driver
|
|
X Y Z axis transmission
|
Taiwan TBI ball screw
|
|
Guide Rail
|
Taiwan Hiwin 20mm square rails
|
|
Control system
|
Mach3
|
|
Inverter
|
Fuling inverter
|
|
Optional parts
|
-3.2kw water cooling spindle
-Rotary axis for 3d work -Leadshine Hybrid motor HBS758 |
1. Whole cast iron structure, steady structure, high rigidity, precision 0.01mm.
2. CNC milling machine which adopt smaller tools, high power and high speed spindle motor.
3. Mould cnc router adopts high end configuration, cast iron structure, and use table movement to keep machine stable and precision.
4. Adopt double column gantry structure with cast iron. Structural steel is strong and stable, have heavy bearing.
5. Advanced in cnc industry, with the break-point memory function, could continue working either an unexpected error occurs (like operate break) or on alternate days.
4040 mould machine can carve copper, aluminium and other soft metal moulds, as well as artificial marble, sand, plastic sheet, PVC pipe, wood and other non-metallic mould.
Guarantee:
1.5 years for the whole machine. Within 1.5 years under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 1.5 years , you will get spare parts at cost price.
Technical support:
1. Technical support by phone, whatsapp, email or Skype around the clock.
2. Friendly English version manual.
3. Engineer available to service machinery overseas.
After sales services:
1: Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately.
2: You will be able to get free training advice towards our machine in our factory.
3: You will also get free suggestion and consultation, technical support and service by email/tel and lifetime technical support.
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video to show how to use machine.
If there is still have any question, we can talk from whatsapp or skype.
2) Can you recommend a CNC ROUTER MACHINE to me, thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials for processing and the thicknes for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended.
