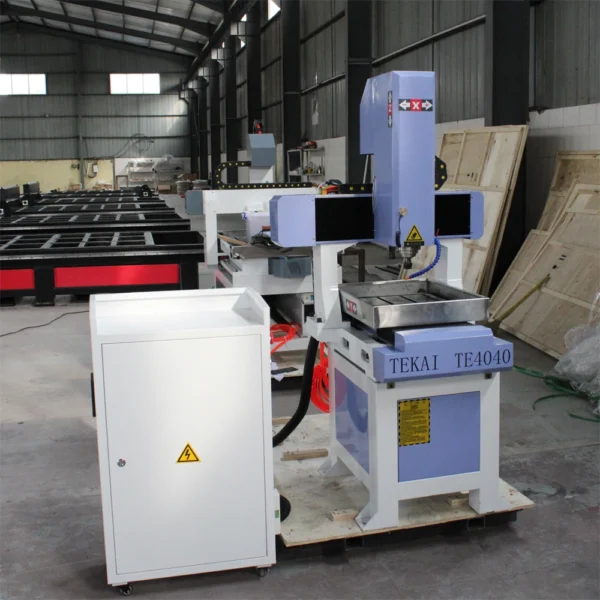

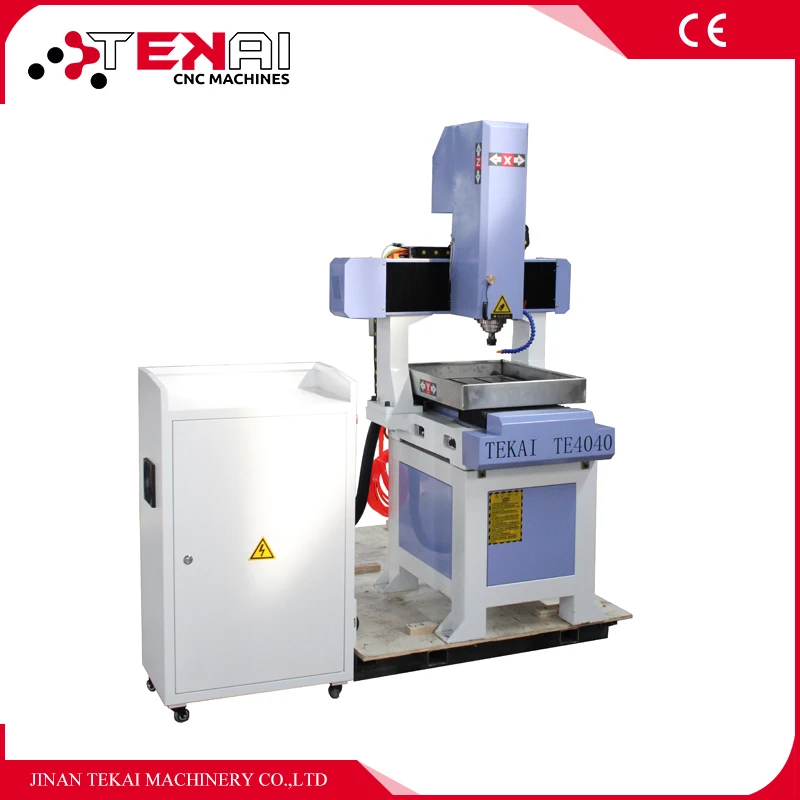

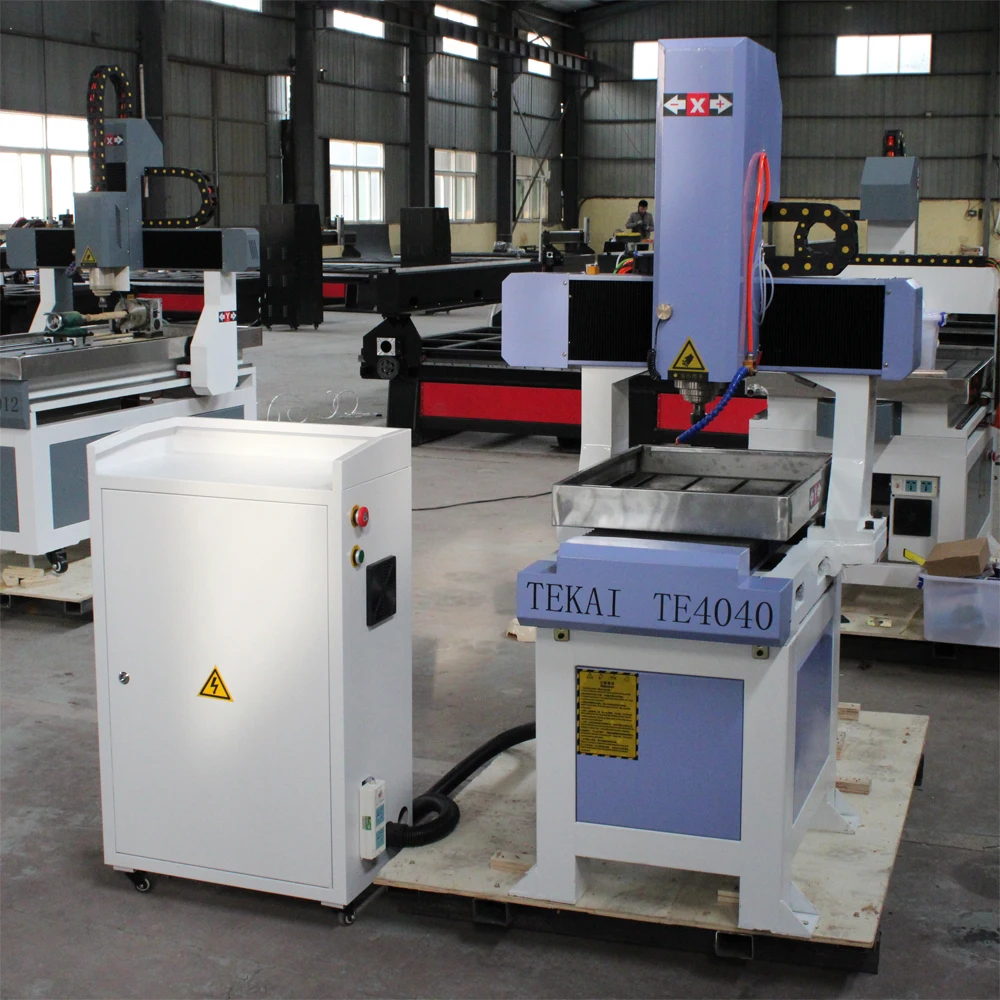

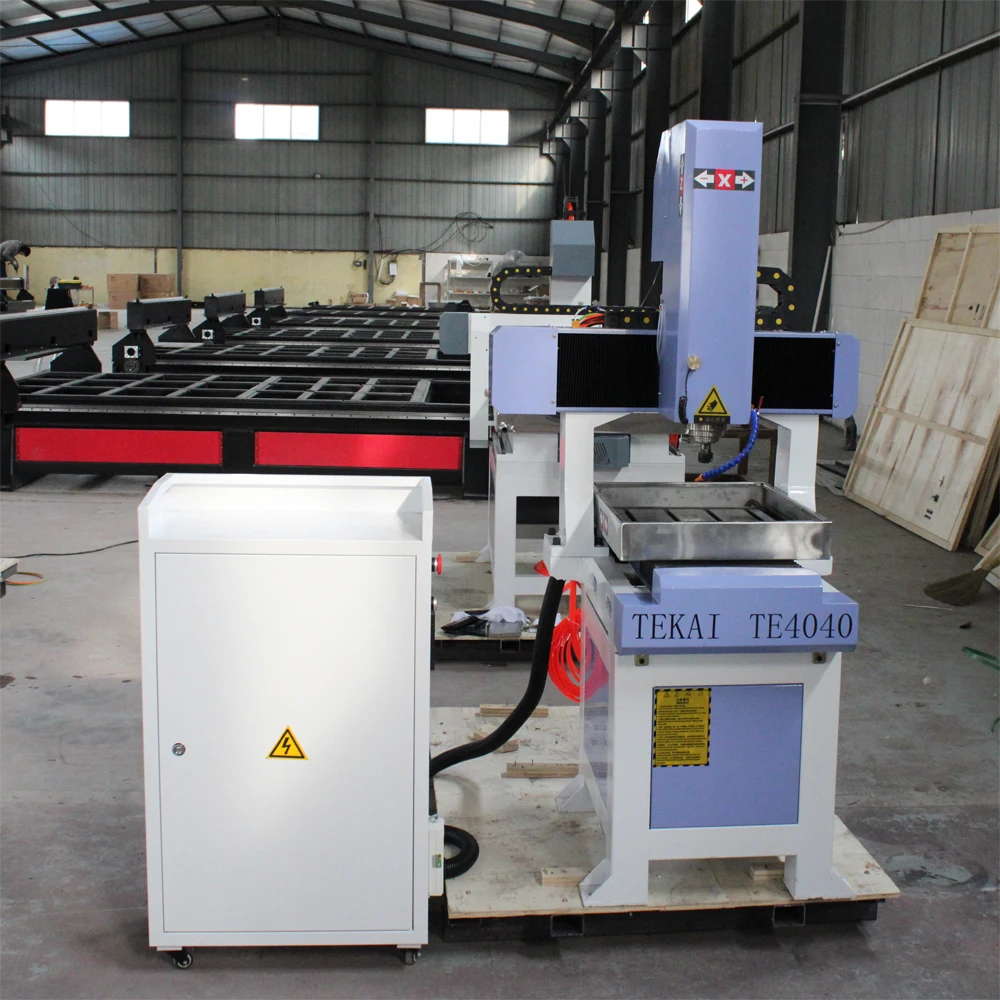

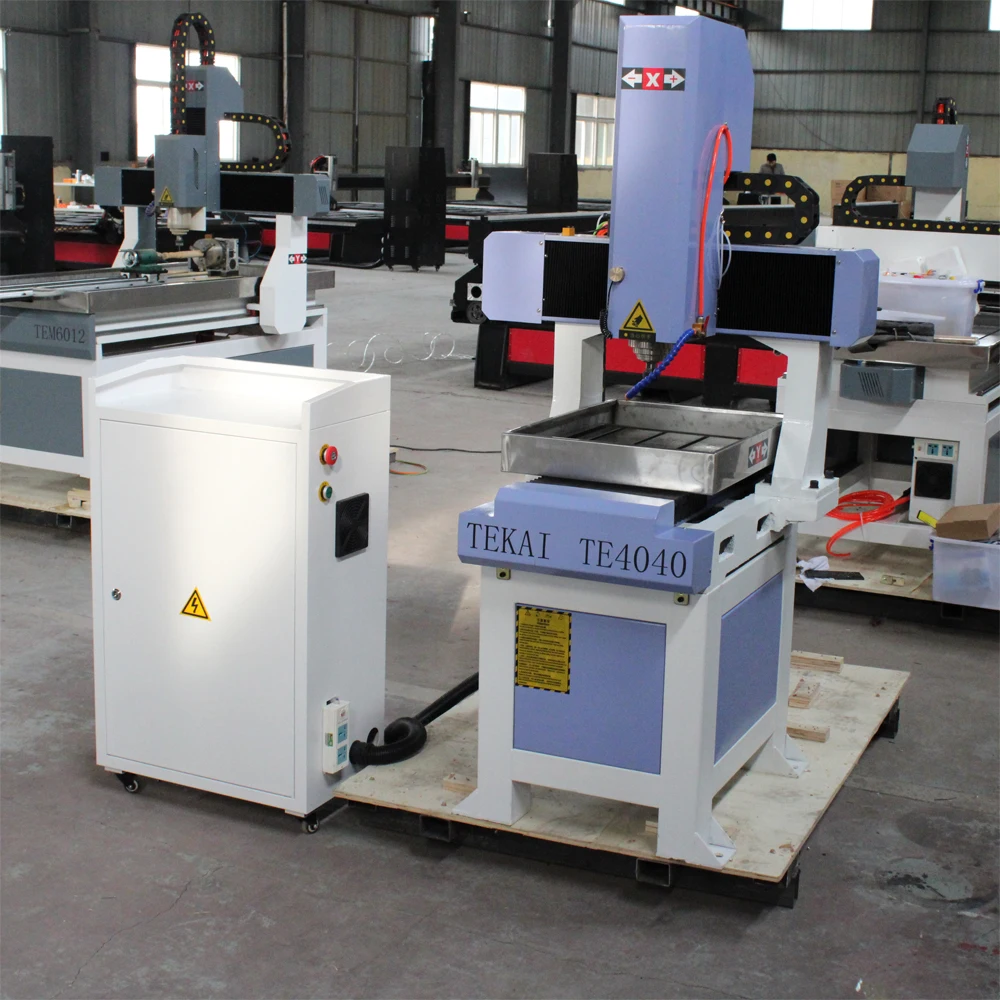

High Quality 4040 CNC Router Cast Iron Structure Body Mould CNC Machine For Shoe Mould Making Kit For CNC Router



High Quality 4040 CNC Router Cast Iron Structure Body Mould CNC Machine For Shoe Mould Making Kit For CNC Router





Product Description







Parameters



Model	TE4040
Working area	400*400*200mm
Spindle	1.5kw mould making spindle
Movement style	Gantry fixed, table moving
Body	Cast iron body
Spindle speed	0-24000rpm
Transmission	Taiwan TBI ball screw
Motor	450A stepper motor
Driver	Leadshine M860 driver
Max. speed	15m/min
Max. working speed	8m/min
Repeat reposition accuracy	±0.005mm
Max. cutting thickness	≤20mm
Inverter	Fuling inverter
Control system	Mach3 controller
Voltage	220V, 50Hz/60Hz
Optional parts	1. 3.2kw mould making spindle 2. Leadshine Hybrid motor HBS758 3. Rotary device 4. Other controller(DSP, NC Studio, Syntec)





Features of metal engraving machine



1. CNC milling machine which adopt smaller tools, high-power and high-speed spindle motor.

2. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type linear guide transmission.

3. Adopt simple, convenient, easy to learn the split keyboard, makes it easier for users to learn how to use the equipment as soon as possible.

4. Advanced in CNC industry, with the break-point memory function, could continue working either an unexpected error occurs (like operate break ) or on alternate days.

5. High compatibility, applicable for CNC software: type3, Artcam, Castmate, Pore, Weitai, variable CAD/CAM etc. It is easily to process relief sculpture, shadow carving, three dimension characters in fancy style etc.





Applications of metal engraving machine



1) It is suitable for engraving, milling and drilling compactly all sorts of materials such as copper, aluminum and plastics.

2) It can widely apply to automotive, injection mould, ironware mould and engrave mould industries.

3) Especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, graphics and words of three-dimensional and outside surface’s sleeking of large size.





Samples display







Our services



1. 1.5 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5. 24 hours on line service each day, free technical support.

6. Machine has been adjusted before delivery.

7. Our staff can be sent to your company to install or adjust if necessary.





Payment & Delivery & Package



Payment



1) T/T: 30% T/T deposit, 70% before shipment. This is the most convenient payment terms for international trade.



2) Trade Assurance on Alibaba. For more details, please contact me.



Delivery



1) The machine will be produced after receive your deposit, its need about 15-25 working days to produce the machine after get your deposit.



2) After the machine is ready, we will test it very carefully, and ensure everything is OK.



3) Then we will show you the machine photos and the testing video.



4) After you agree, please finish the balance payment.



5) Finally, all things are tested well, then we arrange the delivery.



Package



1). Outside package: Standard marine export plywood case



2). Inner package: Stretchy film and plastic film for humidity









RFQ



How can I get the best cnc wood carving machine?

You can tell us your working materials details work by picture or video, so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experences.



This is the first time I use this kinds of cnc wood carving machine, it is easy to operate?

We will send you manual and guide video in English, it can teach you how to operate the machine.



How can i know that the cnc wood carving machine suitable for me?

1. What materials do you want to engrave? Different types cnc machine apply to different material.
2. What’s the max size of your material? (Length *width* thickness)

Once you tell me this information of your material, then I’ll recommend you the most suitable machine and the best price for you. And we can also customize one for you or send you a solution.
