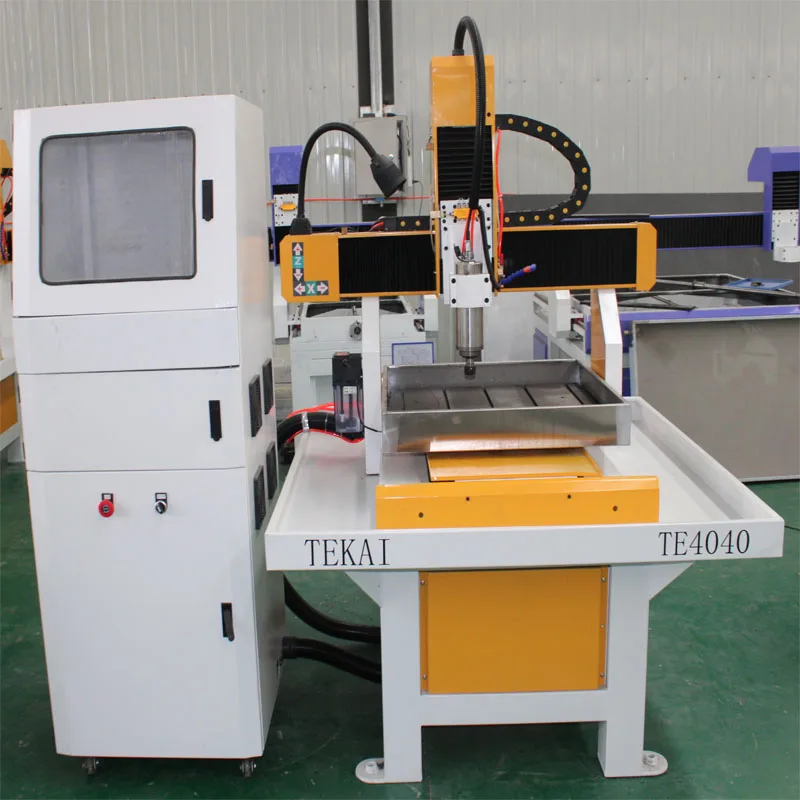

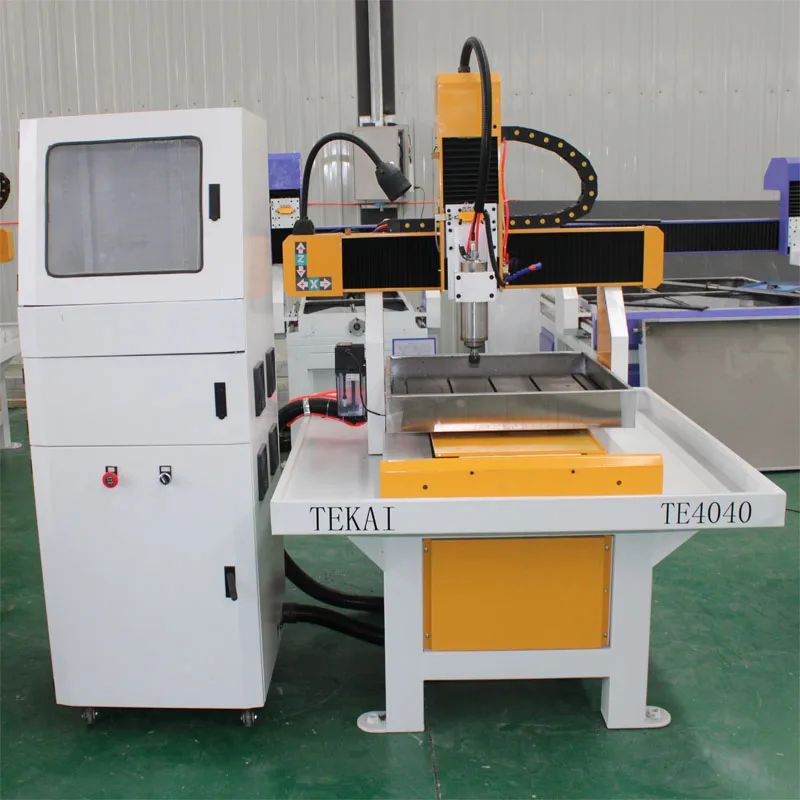

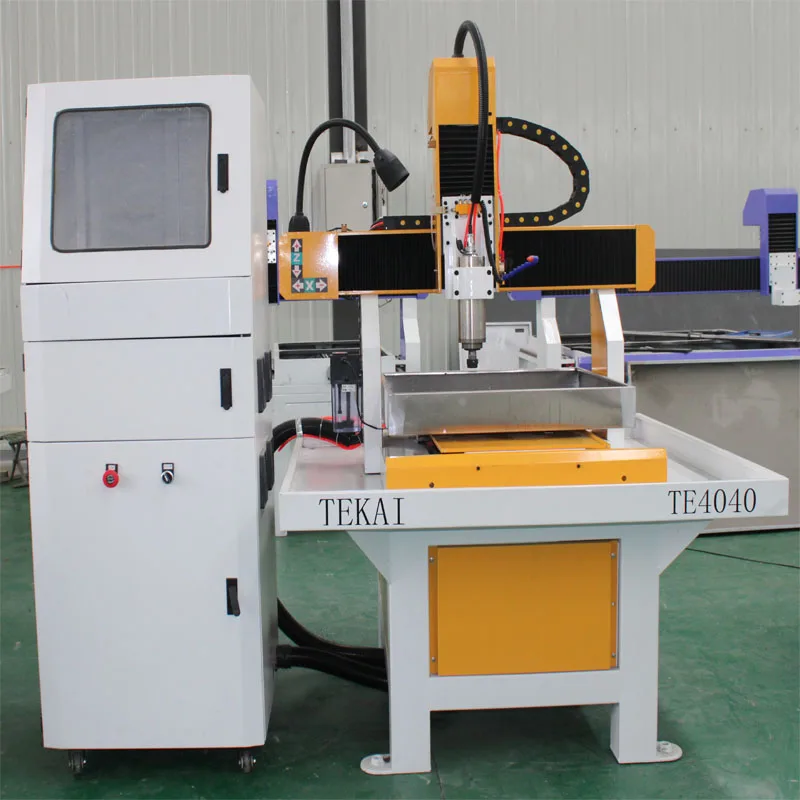

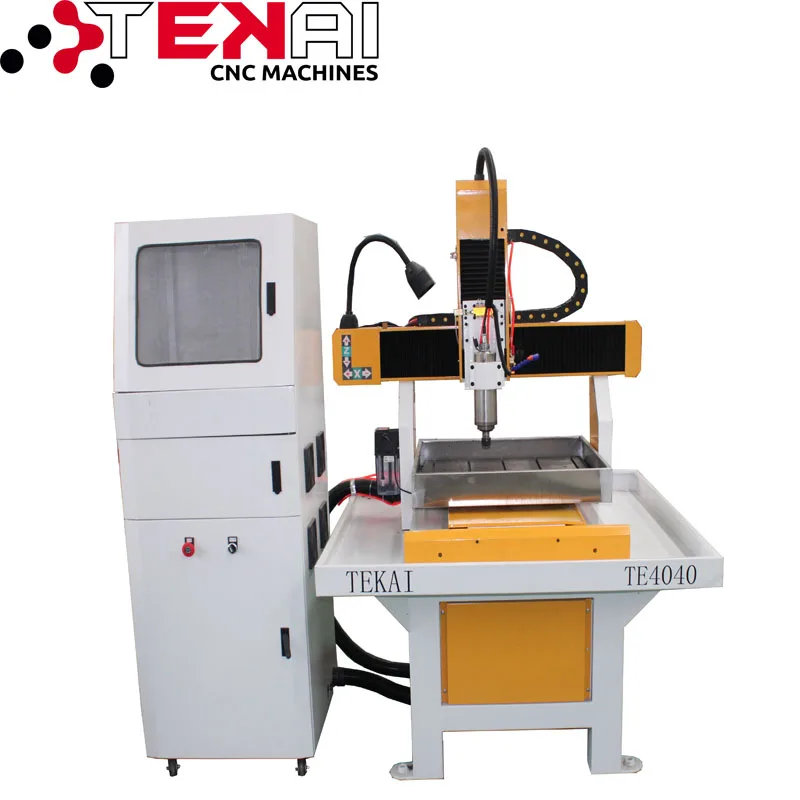

4 axis cnc milling engraving machine machines for manufacturing woodworking machinery milling machine for wood manual
Original price was: 6,316.20€.4,912.60€Current price is: 4,912.60€. exc. 19% Vat
- 14 days Return and Refund - check our Return and Refund Policy
- Shipping Time: 7 - 10 Business Days Worldwide - check out our Shipping Policy
- Payment Options: Bank Transfer and Crypto
- For Questions: use our Livechat or Contact us Form
- Is Smart Device: YES
- Model Number: TE4040
- Condition: New
- Brand Name: TEKAI
- CNC or Not: CNC
- Product name: 4 axis milling engraving machine
- Spindle: 1.5kw water cooling spindle
- Transmission in X, Y axis: Ball Screw Transmission
- Motor: Stepper motor
- Driver: Leadshine driver
- Engraving speed: 8000mm/min
- Cutting speed: 6000mm/min
- Working precision: 0.01mm
- power: 2.2 kw
- Colour: can be customerized
Specifications
TE4040 metal cnc router
1.water cooling spindle
2.Taiwan HIWIN rail
3.x and z by Taiwan TBI Ball screw
4.best price
4 axis cnc milling engraving machine machines for manufacturing woodworking machinery milling machine for wood manual
Technical Parameters of CNC Mould Machine TE4040
| Model | Professional CNC router mould machine |
| Structure/machine body | Whole cast iron T-slot table/welding Steel with water S.S. tank |
| Movement style | Gantry fixed, table move |
| X Y Z working size | 400*400*200mm |
| X Y Z rail | Hiwin square guide rail |
| X Y Z transmission | Taiwan TBI Ball screw |
| Spindle | 2.2kw water cooling spindle |
| Spindle speed | 24000rpm |
| Motor | Stepper motor |
| Driver | Leashine driver |
| Inverter | Fuling inverter |
| Voltage | 220V/380V±10% 50HZ/60HZ three/Single phase |
| Collets | ER 20 3.175-12.7mm |
| Filter | Yes |
| Cover | X steel cover |
| Lubrication | Yes |
| Max. speed | 15m/min |
| Max. working speed | 8m/min |
| Repeat reposition accuracy | ±0.005mm |
| Max. cutting thickness | <=20mm |
| Software | Artcam/Ucancam/Type 3 |
| Control system | Mach 3 mould system |
| Command | G-code |
| Machine size | 1240*1210*1550mm |
| N/G weight | 400/450KG |
The features of 4 axis milling engraving machine:
1. TE4040 is the table type CNC router, is the best choice for small piece materials working, can use it in the office or at home.
2. This mini desktop machine is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials.
3. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision.

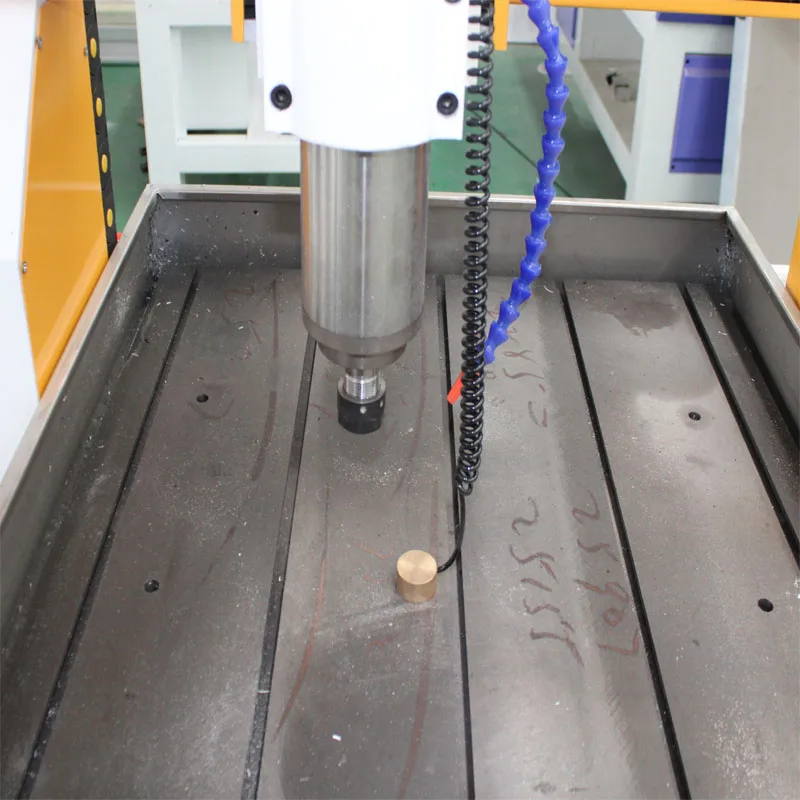

4. The machine with T-slot table, holding the materials with clamps, High precision, can work on wood, plastics, acrylic, even metal.
Our service for our customers:
1. one years quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.
Samples from TE4040:

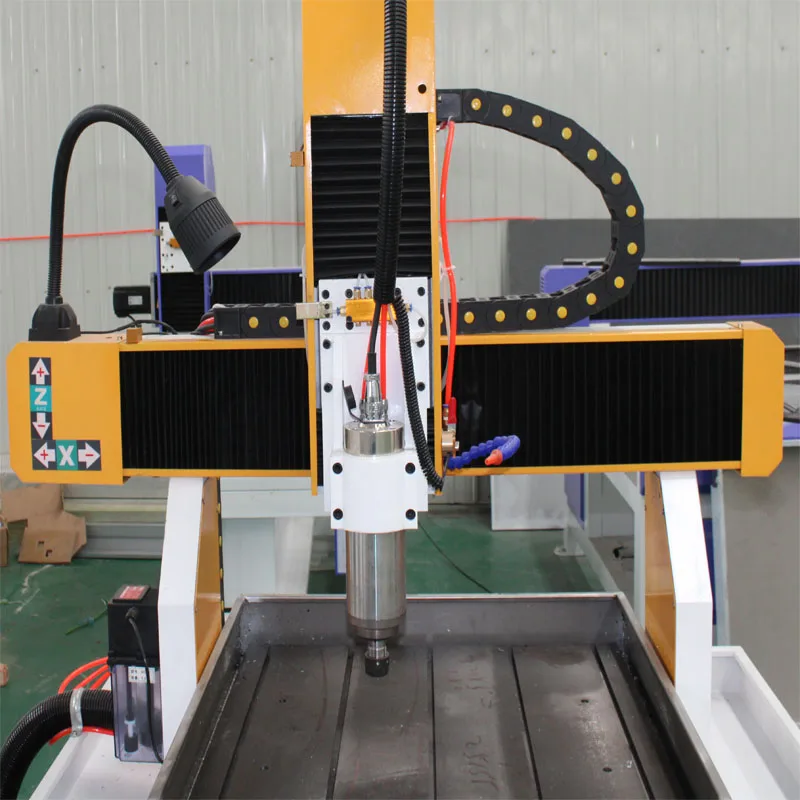

Detailed parts:
Our company:
Jinan Tekai Machinery Co., Ltd was located in high technology industry zone of Jinan,which specializes in manufacturing CNC and laser machines since 2005.
