-22%

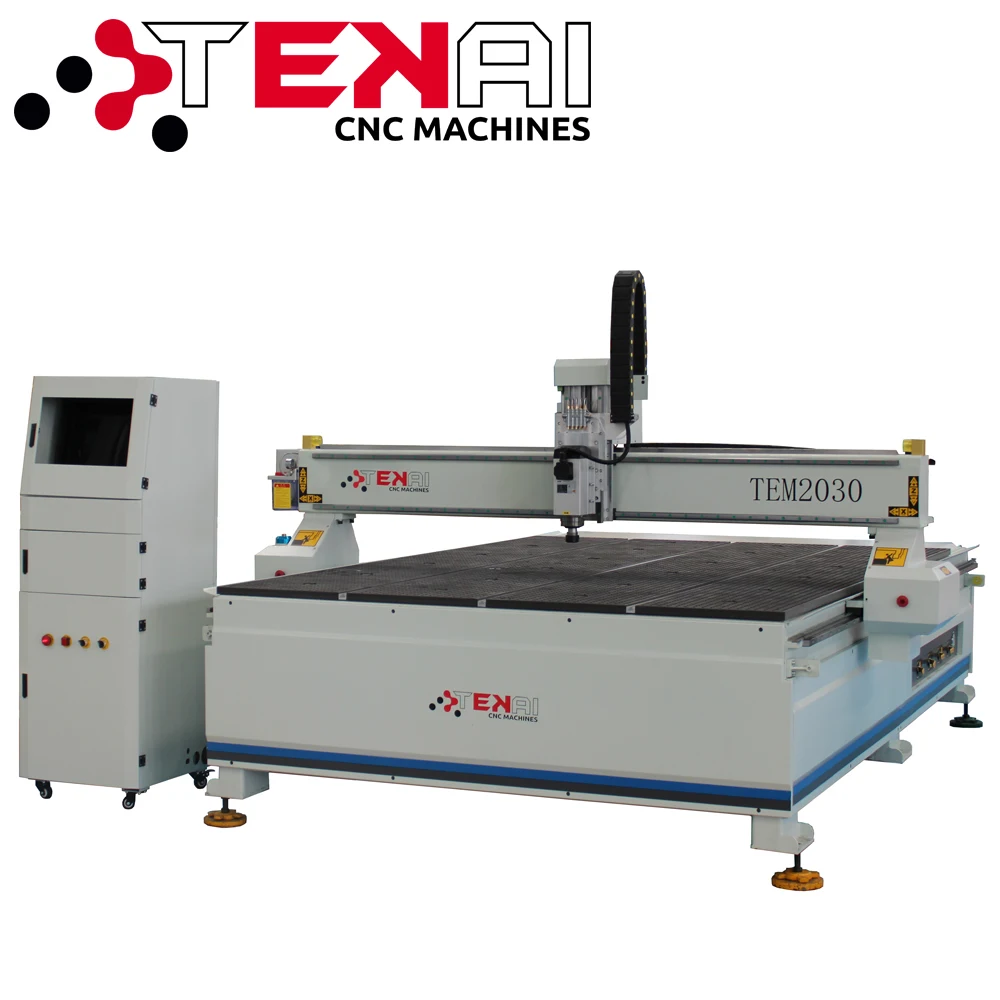

TEM2030 Fast Speed CNC Wood Milling Cutter Lathe Drilling Machine 3d CNC Wood Design Machine Router
Original price was: 10,890.00€.8,470.00€Current price is: 8,470.00€. exc. 19% Vat
- 14 days Return and Refund - check our Return and Refund Policy
- Shipping Time: 7 - 10 Business Days Worldwide - check out our Shipping Policy
- Payment Options: Bank Transfer and Crypto
- For Questions: use our Livechat or Contact us Form
12 in stock
Only 12 left, hurry up.
Shipping is available in Germany.
- Controller: MACH3
- Is Smart Device: YES
- Origin: Mainland China
- Model Number: TEM2030
- Condition: New
- Brand Name: TEKAI
- CNC or Not: CNC
- Product name: Cnc Router Machine
- Working area: 2000*3000mm
- Application: Wood Acrylic PVC Engraving Cutting
- Spindle: 3.0kw Water Cooling Spindle
- Control system: Mach3 ( Usb Port)
- Working table: T Slot Platform
- Linear guide: Taiwan Square Linear Guide
- Working Voltage: AC220V/380V
- Drive motor: Steper Motors
- Color: Clients Requirment
TEM2030 Fast Speed CNC Wood Milling Cutter Lathe Drilling Machine 3d CNC Wood Design Machine Router
Product Description
1) High temperature tempering treatment, welded steel tube T type machine bed and gantry, high rigidity, bearing strength better.
2) Y axis with double Leadshine stepper motor and driver, moving stably. 3) Linear square guide rail with automatic oil lubrication device, ensuring long life time working, reduce the time of machine maintenance. 4) 3.0kw water cooling spindle, more powerful, low noise, not easy to break cutters, suitable for engraving and cutting work. 5) Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensure the machine fast speed and higher precision.
2) Y axis with double Leadshine stepper motor and driver, moving stably. 3) Linear square guide rail with automatic oil lubrication device, ensuring long life time working, reduce the time of machine maintenance. 4) 3.0kw water cooling spindle, more powerful, low noise, not easy to break cutters, suitable for engraving and cutting work. 5) Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensure the machine fast speed and higher precision.
Product Parameters
|
Model
|
TEM2030 woodworking machine
|
|
Spindle
|
3.0kw water cooling spindle
|
|
Spindle Speed
|
0-24000rpm
|
|
Working Area
|
2000x3000x200mm
|
|
Transmission
|
X Y axis gear transmission
|
|
Z axis Taiwan TBI ball screw
|
|
|
Max. Motion Speed
|
32000mm/min
|
|
Max. Working Speed
|
25000mm/min
|
|
Rails
|
Taiwan Hiwin 20mm square rails
|
|
Motor
|
450B stepper motor
|
|
Driver
|
Leadshine M860 driver
|
|
Control System
|
Mach3 controller
|
|
Interface
|
USB
|
|
Lubrication
|
Oil lubrication
|
|
Inverter
|
Fuling inverter
|
|
Collect
|
ER20
|
|
Working Voltage
|
AC 220V/380V
|
|
Optional parts
|
5.5kw water cooling spindle
|
|
Leadshine Hybrid motor HBS758
|
|
|
Other control system
|
|
|
Rotary axis for 3d working
|
|
|
Vacuum table with vacuum pump
|
|
|
Dust collector
|

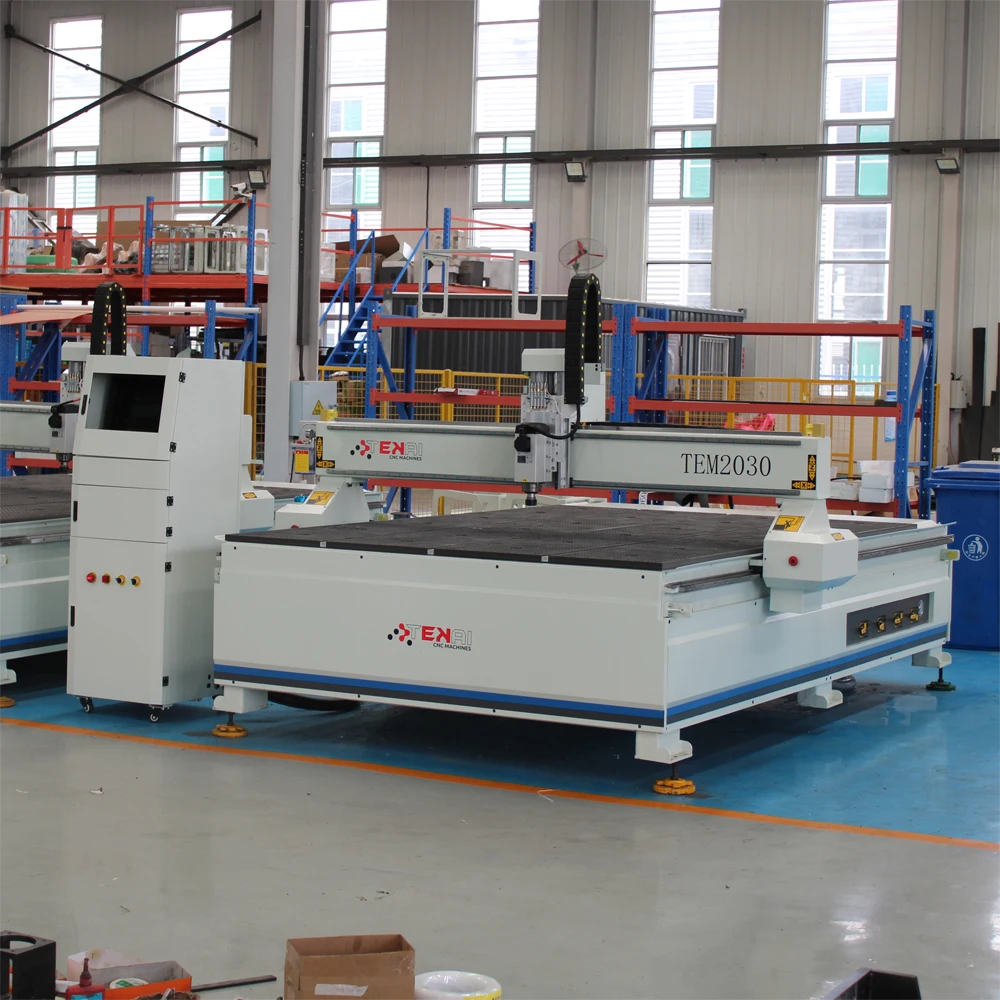

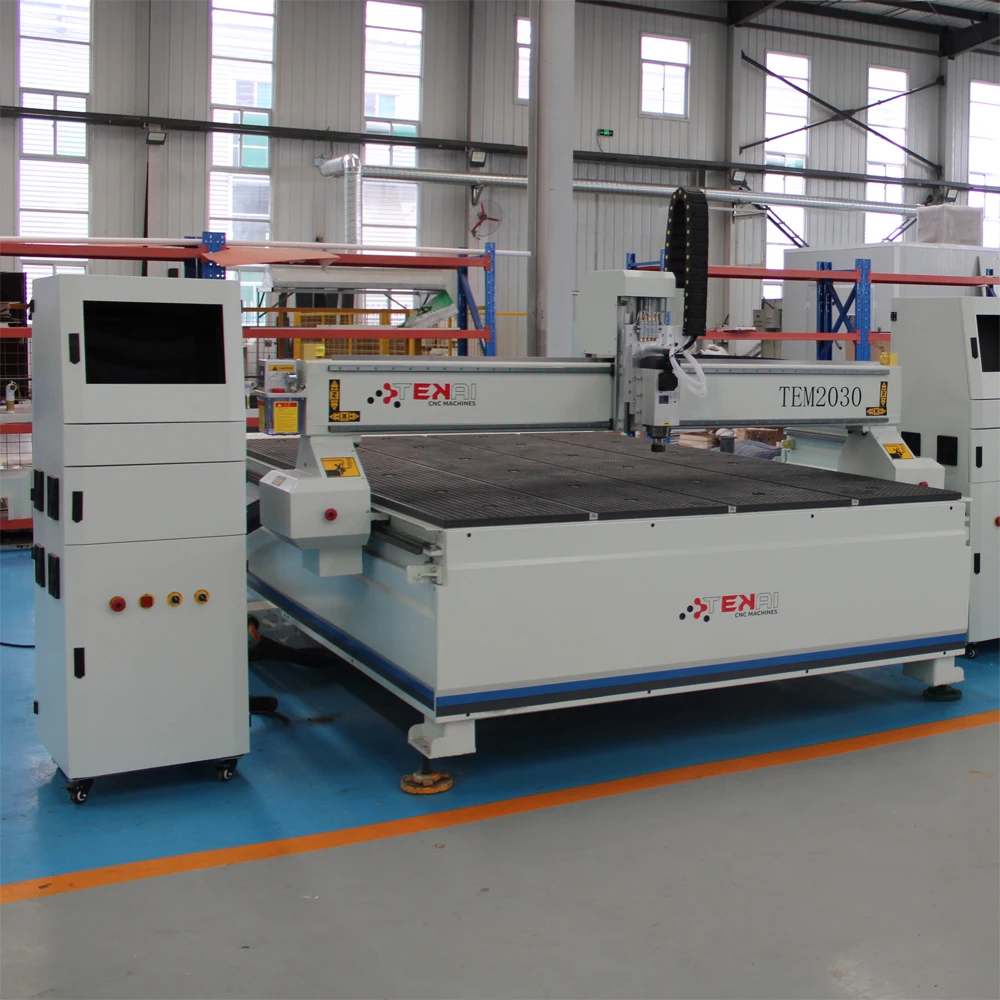

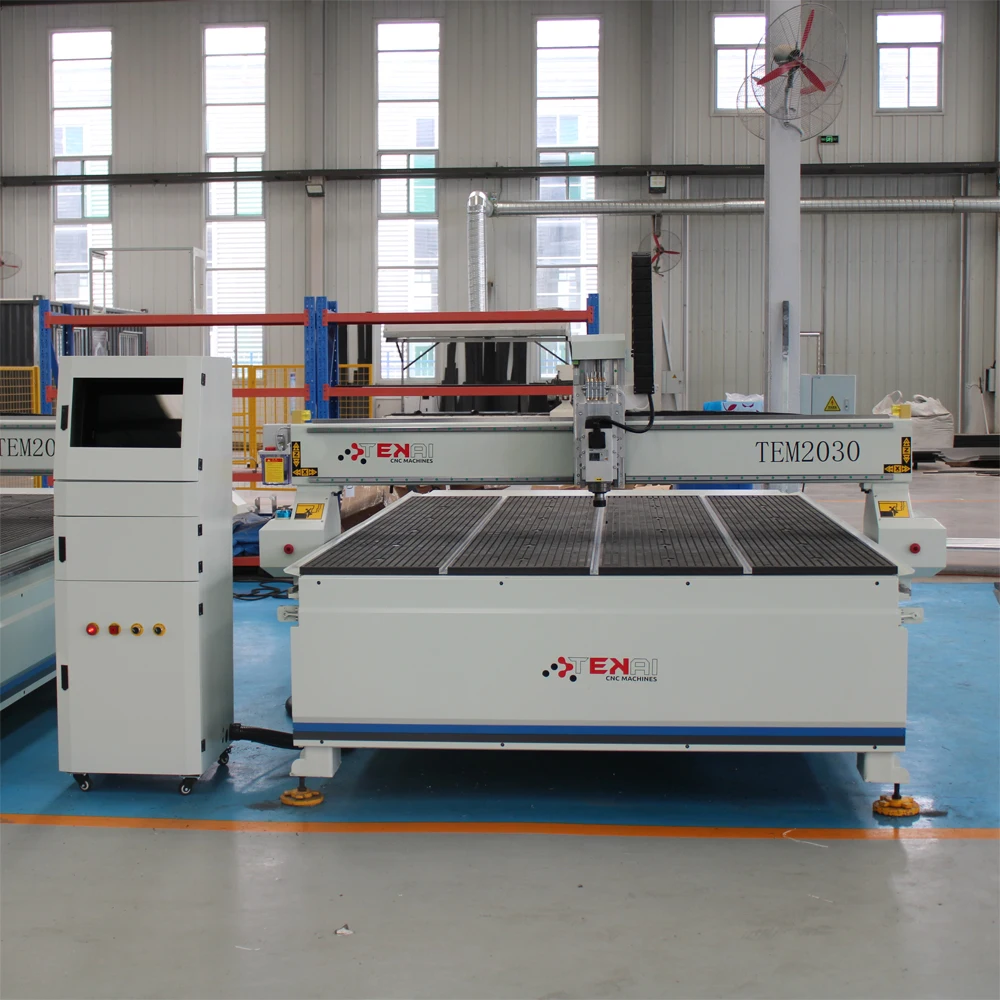

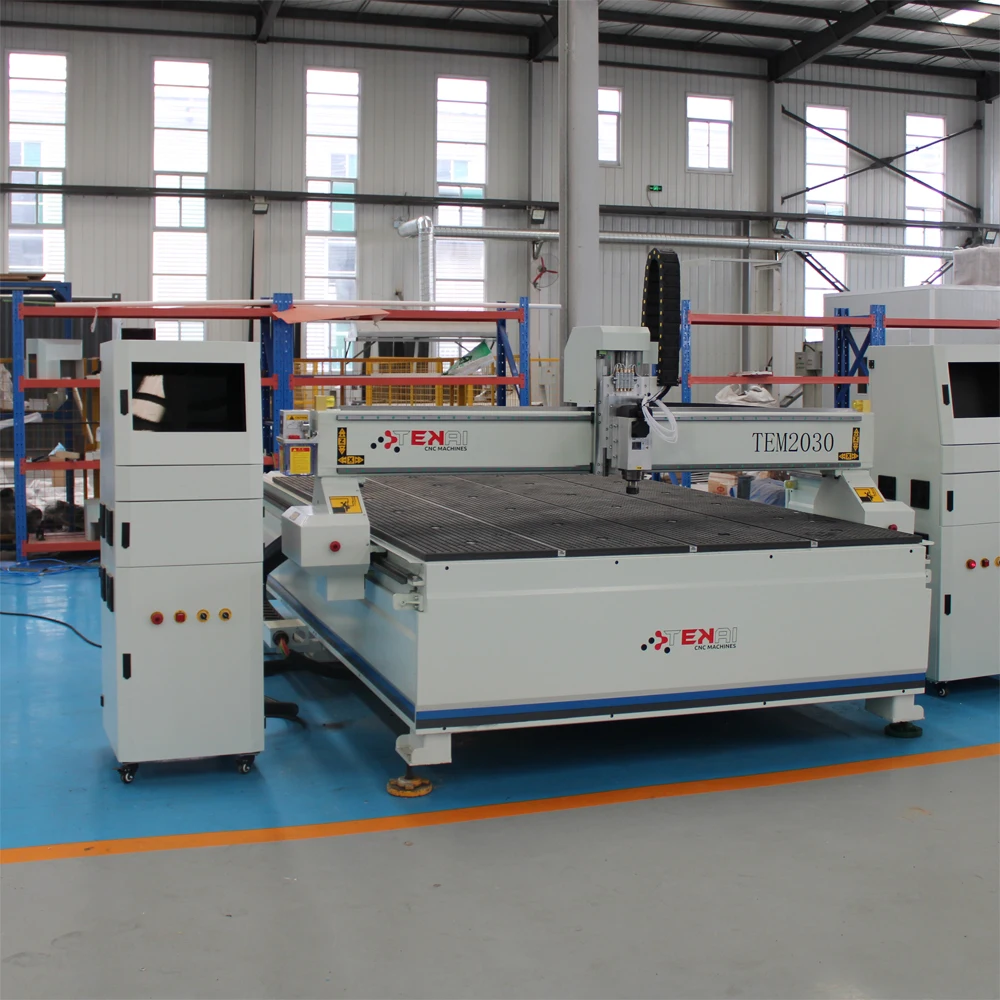

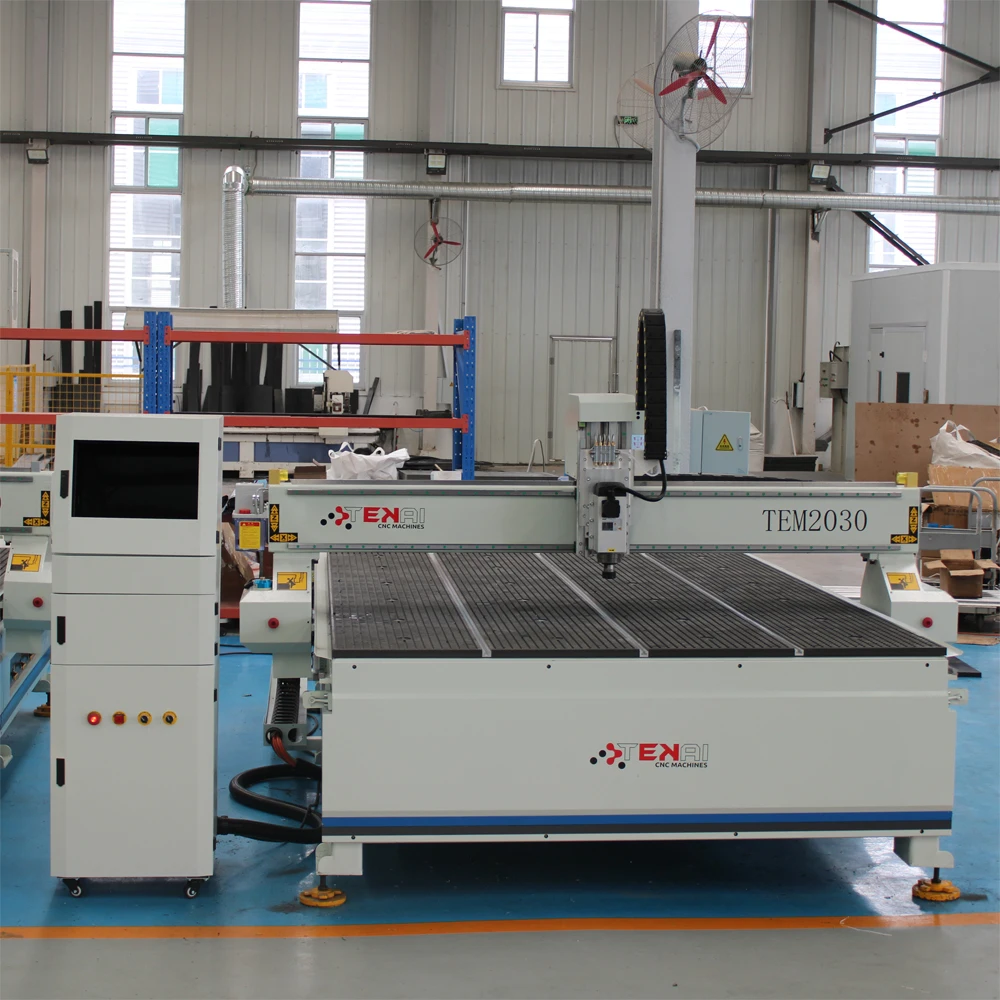

Details Images
Application Industries
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cup board doors, interior doors, sofa legs, headboards, game cabinets, computer tables, sewing machines table, instruments.
2. Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
Samples Display
Packing & Delivery
Packing details
1). Outside package: Standard marine export plywood case
2). Inner package: Stretchy film and plastic film for humidity
3).We can pack according to customer’s requirements
Shipped in 20-25 working days after payment
1) Machine has been adjusted and test 48 hours before delivery
2) English software, user manual and detailed installation & training video in USB
3) Some extra spare parts
After-sale Service
1. 1.5 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
5. Our staff can be sent to your company to install or adjust if necessary.
