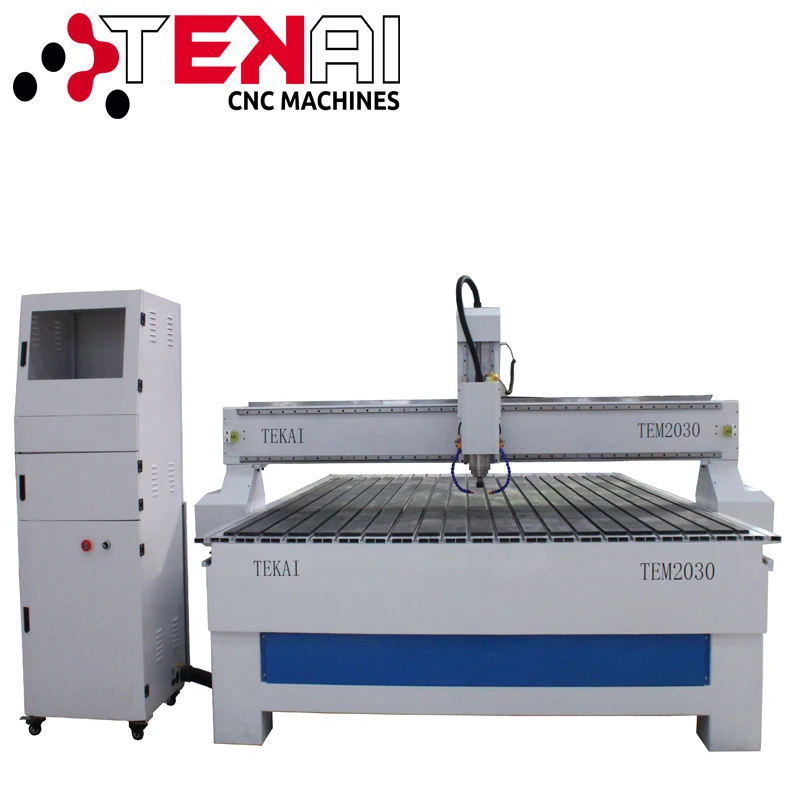

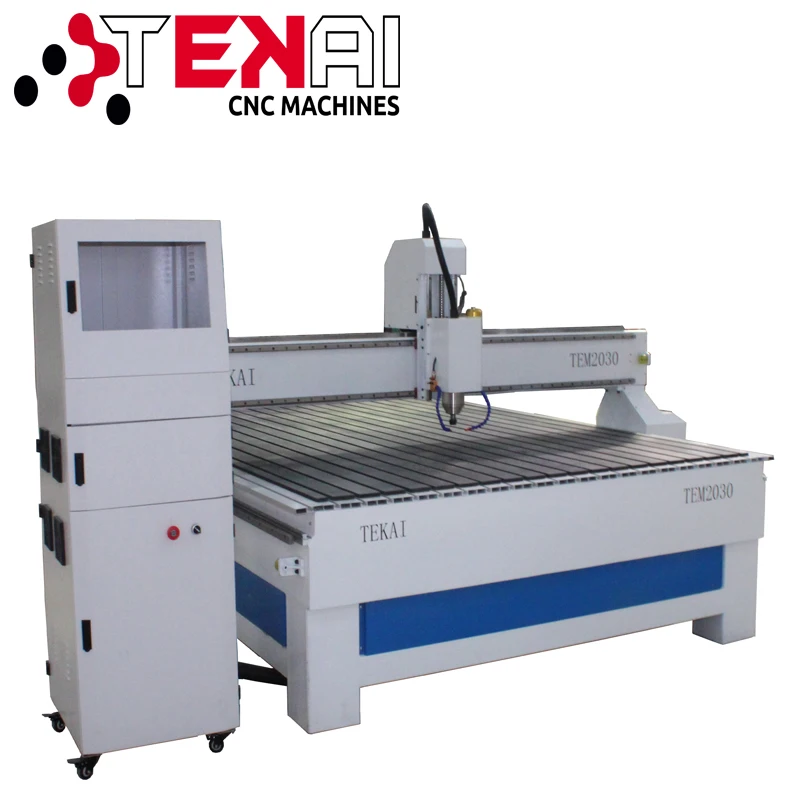

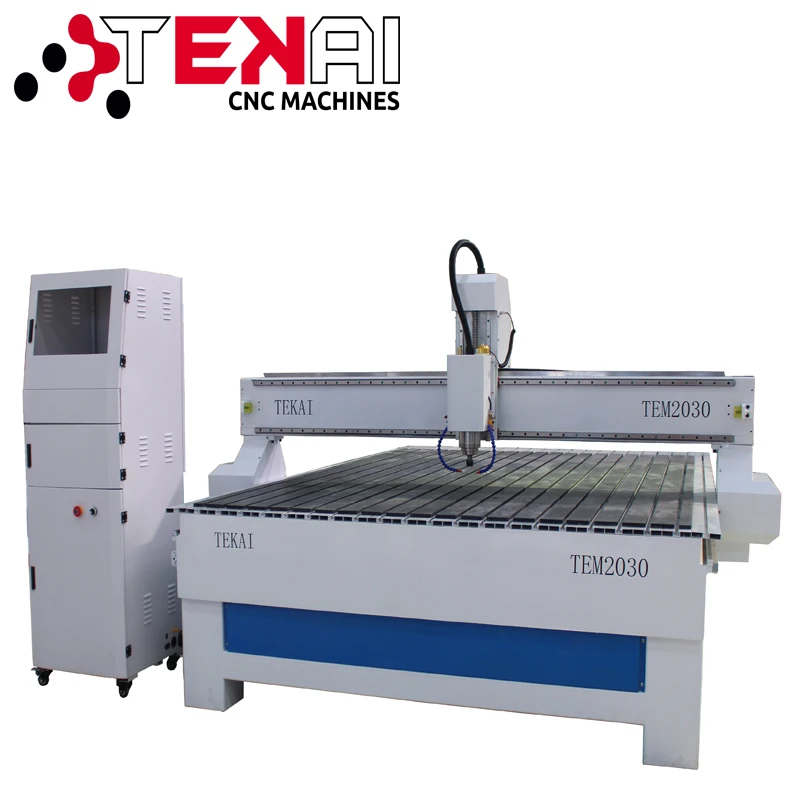

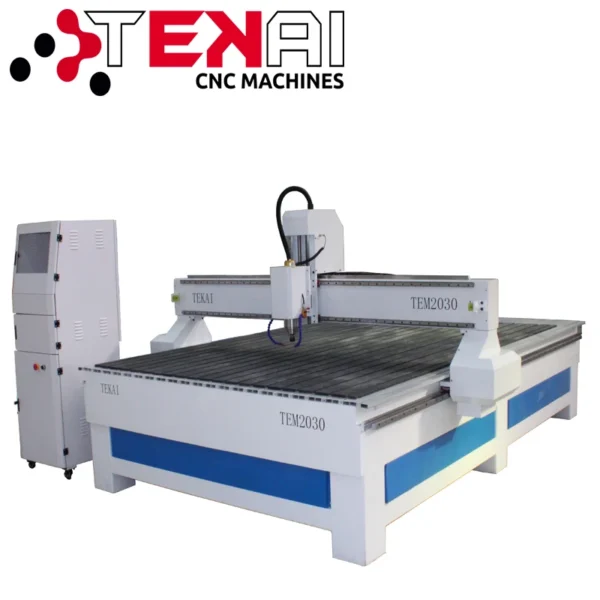

TEKAI square guide rail cnc wood router 3d mdf woodworking machinery router cnc woodworking machine vacuum table

1. The parameter of 3d mdf woodworking cnc:



Model	TEM2030  cnc machine
Working Area	2000×3000×200mm
Spindle	3.0kw water cooling spindle motor
Working Mode	Leadshine Stepper Motor (Servo motors is optional)
Control System	DSP off-line control panel with USB interface(128MB) or MACH3
Drive Mechanism	Gear and pinion on X Y axis
Table Surface	T-slot table or vacuum table
Frame	Wholly Steel Structure
Motion Positioning Accuracy	± 0.03/300mm
Re-positioning Accuracy	± 0.05mm
Max Motion Speed	50,000mm/min
Max Engraving Speed	30,000mm/min
Rotating Speed of Spindle	2,4000rpm

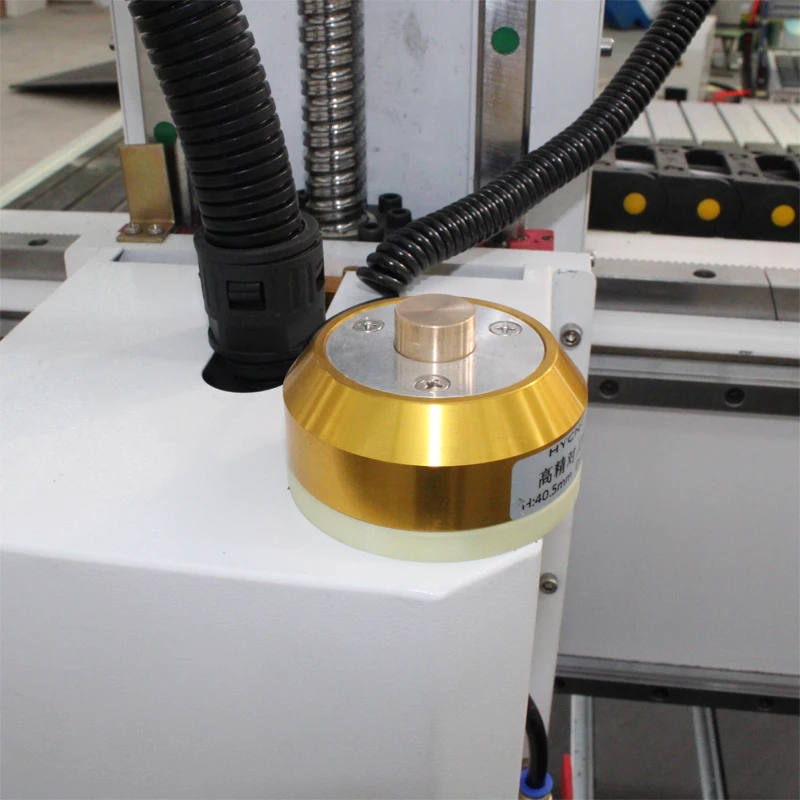

Z-axis setting	Auto Z origin tool high sensor
Dictate Formate	G code, *.u00, *.mmg, *.plt
Operating Voltage	3phase 380V
Software	Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software
Packing Size	3620*2240*1730mm
Lubrication System	Oil lubrication system
Net weight/ Gross Weight	1550kg/ 1700kg
Optional Parts	Dust Collecting System
	Delta Inverter
	Oil mist cooling system
	Rotary device
	Others for customized

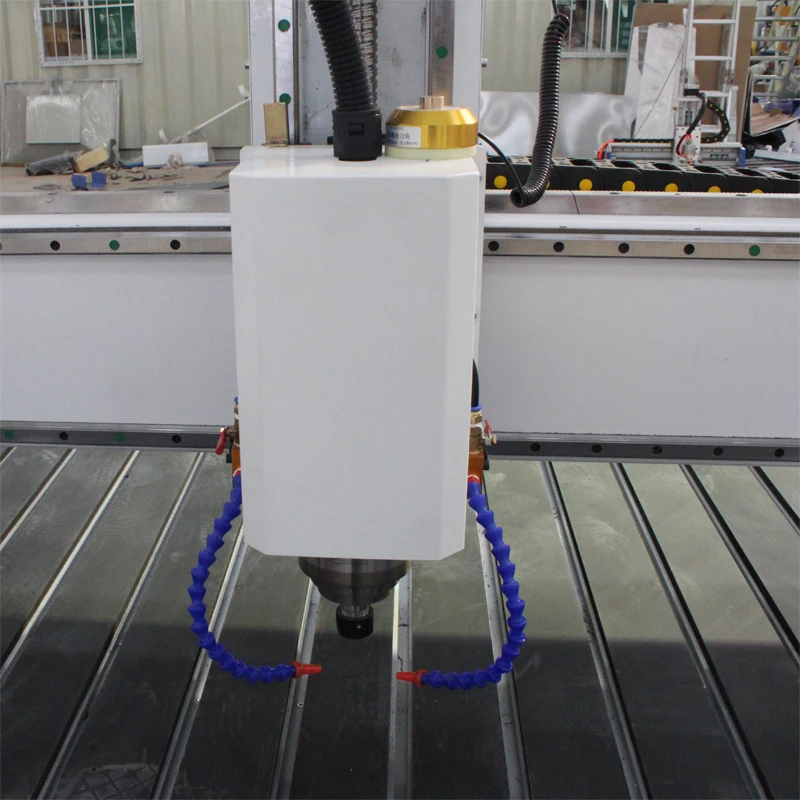

2. Detailed parts of 3d mdf woodworking cnc:





3. Application materials:



4. Application materials:



1. Furniture: plate, office furniture, doors, cabinets.

2. Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.

3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.

4. Decoration:Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.



5. CE certificates:

We process the CE, FDA, ISO certificates, if you have any other special requirements for machine certificate,

like CO(certificate of origin), just tell me, it is ok for us to apply for you.



6. The shipping and service for supply for customer:





• Technical support for our customer:



  1. Technical support by phone, email or WhatsApp/Skype, we will make time with customer and engineer.

  2. English version manual and operation video CD disk for customer.

  3. Engineer available to service machinery overseas



• Guarantee:


  Two years for the whole machine. Within two years under normal use and maintenance, if something is wrong with the machine, you will send to you for free.

  Out of two years, you will get spare with the lowest price. You will also get technical support and service all the lifetime.

  Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.



  Besides, you will be able to get free training advice about how to install the spare parts. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc
