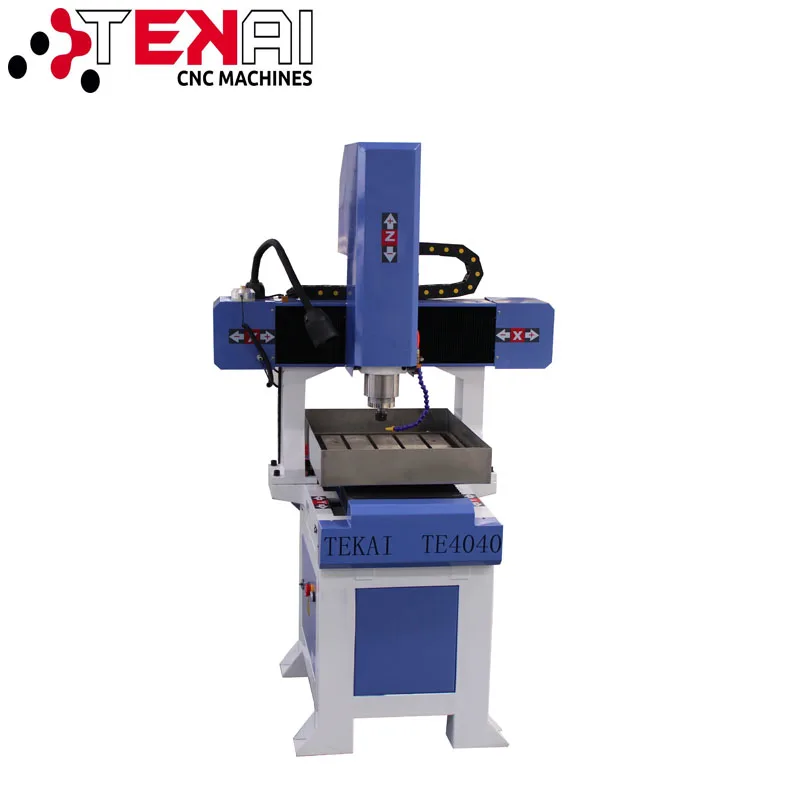

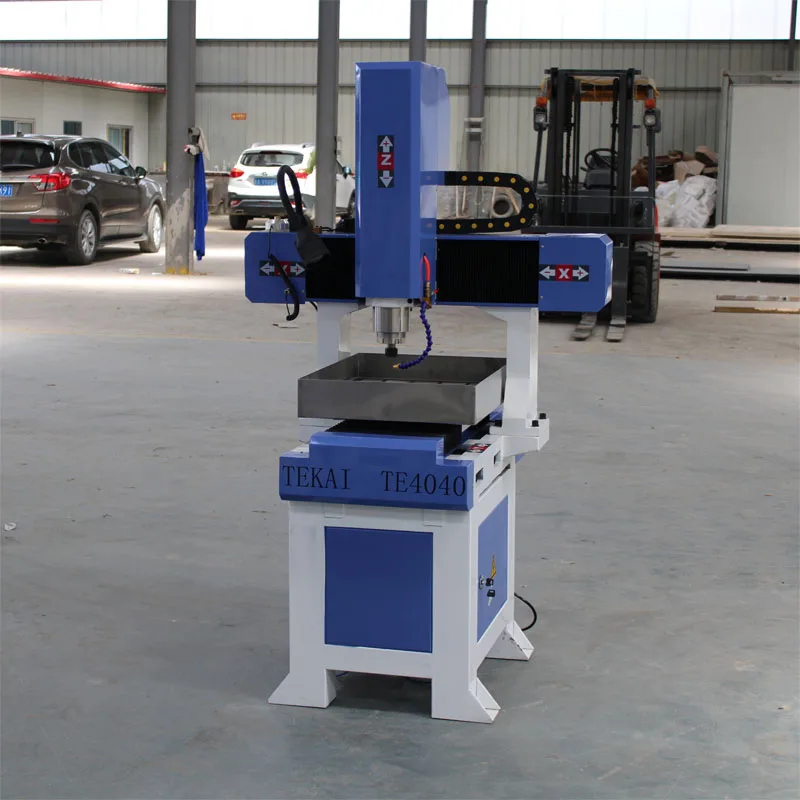

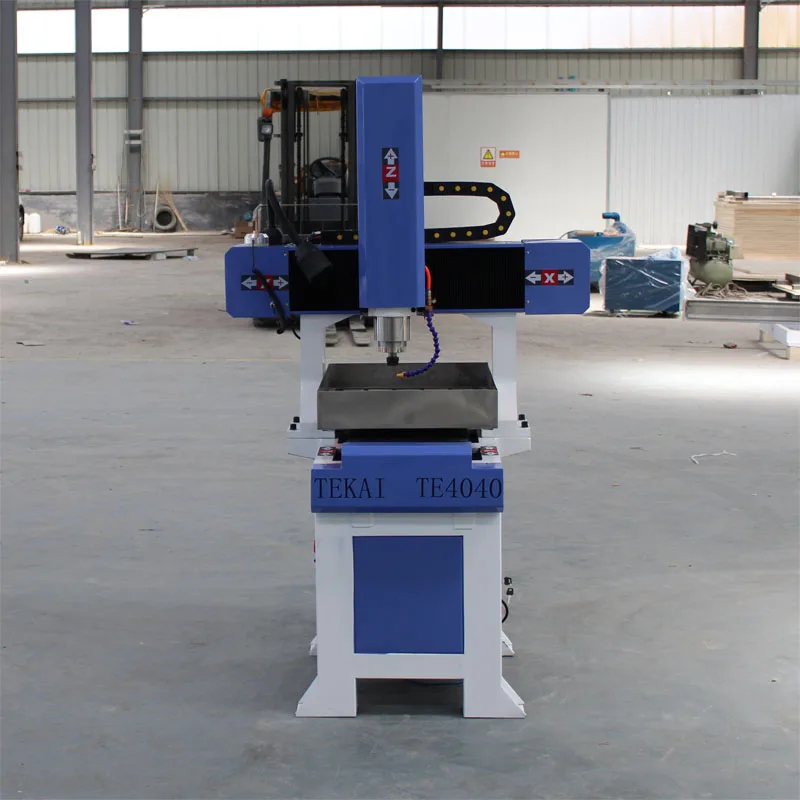

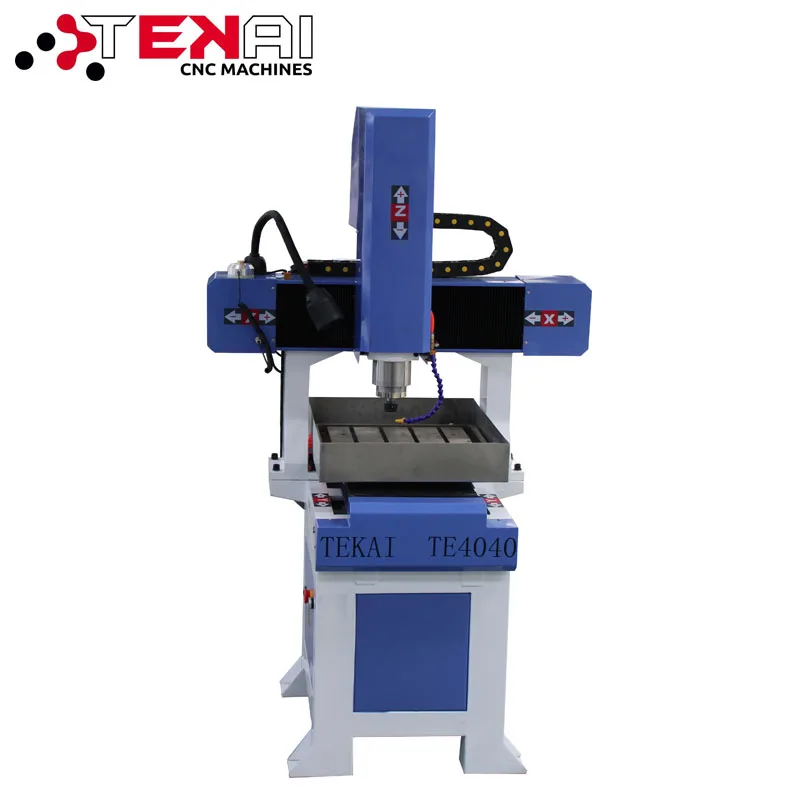

TE4040 Mini Desktop Metal CNC Router 3d CNC Wood Aluminium Brass Carving Machine
Original price was: 5,880.60€.4,573.80€Current price is: 4,573.80€. exc. 19% Vat
- 14 days Return and Refund - check our Return and Refund Policy
- Shipping Time: 7 - 10 Business Days Worldwide - check out our Shipping Policy
- Payment Options: Bank Transfer and Crypto
- For Questions: use our Livechat or Contact us Form
9 in stock
Only 9 left, hurry up.
Shipping is available in Germany.
- Is Smart Device: YES
- Origin: Mainland China
- Model Number: TE4040
- Condition: New
- Brand Name: TEKAI
- CNC or Not: CNC
- Product name: Cnc Router Engraving Machine
- Control system: Mach3

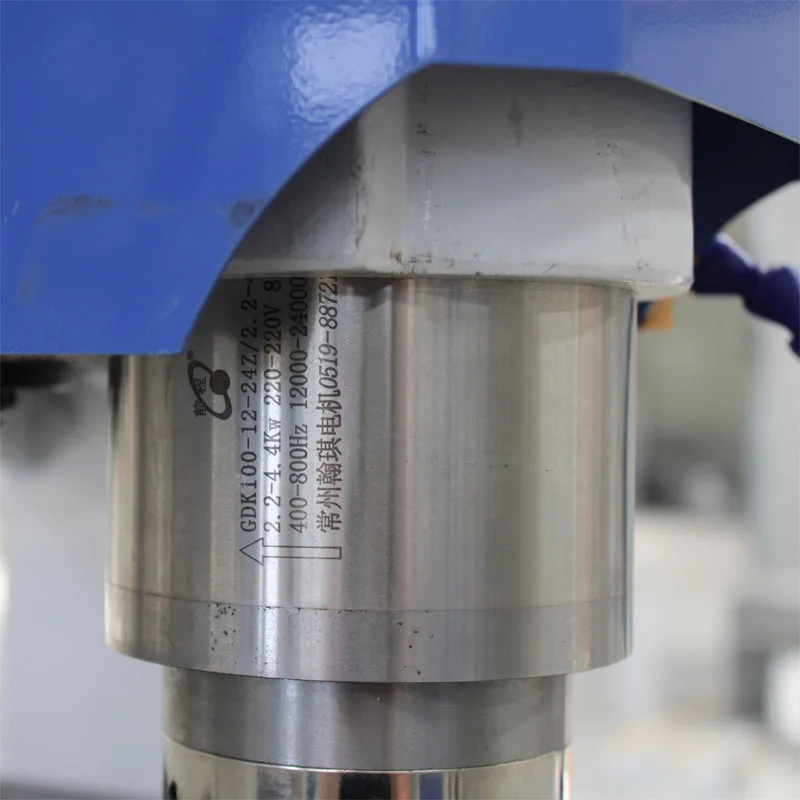

- Spindle: 1.5 Kw Water Cooling Spindle
- Transmission: Taiwan TBI Ball Screw
- Application: Softmetals Etc
- Frame: Cast Iron Body Frame
- Table: T.slot Table
- Working area: 400*400mm
- Guide rail: Taiwan Hiwin Square Guide Rail
- Color: Clients Requirment
TE4040 Mini Desktop Metal CNC Router 3d CNC Wood Aluminium Brass Carving Machine
Parameters of cnc metal engraving machine
| Model | TE4040 |
| Working area | 400*400*200mm |
| Spindle | 1.5kw water cooling spindle |
| Spindle cooling | Water cooling |
| Spindle speed | 24000rpm |
| Accuracy | ±0.02mm |
| Frame | Cast iron body |
| Movement style | Table moving |
| Transmission | Taiwan TBI ball screw |
| Motor | 450A stepper motor |
| Driver | Leadshine M860 driver |
| Max. rapid travel rate | 6000mm/min |
| Max. working speed | 3000mm/min |
| Rails | Taiwan Hiwin 20mm rails |
| Control system | Mach3 controller |
| Inverter | Fuling inverter |
Features of cnc metal engraving machine
1. Whole cast iron structure, steady structure, high rigidity, precision 0.02mm.
2. CNC milling machine which adopt smaller tools, high power and high speed spindle motor.
3. Mould cnc router adopts high end configuration, cast iron structure, and use table movement to keep machine stable and precision.
4. Adopt double column gantry structure with cast iron. Structural steel is strong and stable, have heavy bearing.
5. Adopt simple, convenient, easy to learn the split keyboard, makes it easier for users to learn how to use the equipment as soon as possible.
6. Advanced in cnc industry, with the break-point memory function, could continue working either an unexpected error occurs (like operate break) or on alternate days.

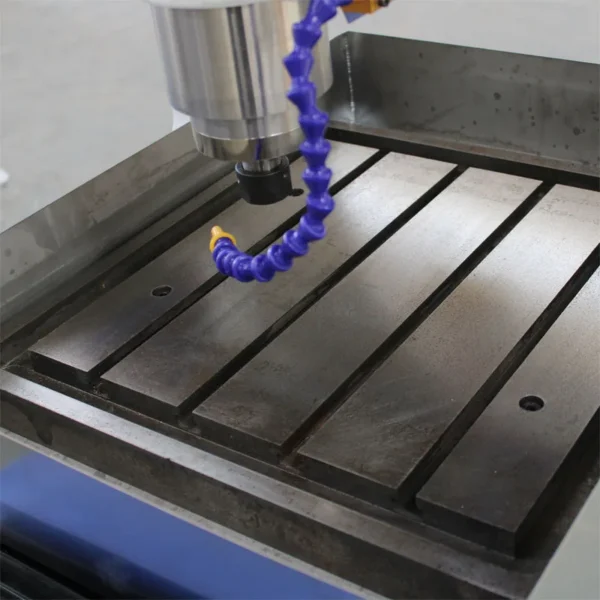

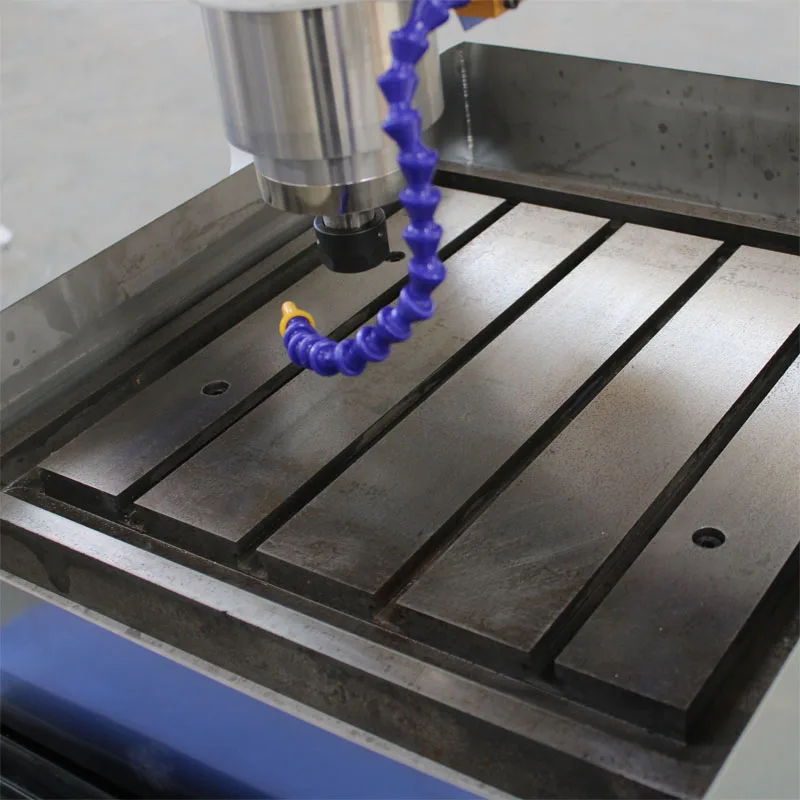

Detailed of cnc metal engraving machine
Samples of cnc metal engraving machine
After-sale services
1. 18 months guarantee of the whole machine.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our staff can be sent to your company to install or adjust if necessary.
Packaging & Shipping
Packaging details:
1). Outside package: Standard marine export plywood case
2). Inner package: Stretchy film and plastic film for humidity
Shipping details:
Shipped in 20-25 working days after payment
1) Machine has been adjusted and test 48 hours before delivery
2) English software, user manual and detailed installation & training video in USB
3) Some extra spare parts
