Wood Stair Cnc Router Machine Cnc Router 1224 Cnc Milling Machine Parts Cnc Router 1200×1200 3d Mini Cnc Engraving Machine
Original price was: 8,712.00€.6,776.00€Current price is: 6,776.00€. exc. 19% Vat
- 14 days Return and Refund - check our Return and Refund Policy
- Shipping Time: 7 - 10 Business Days Worldwide - check out our Shipping Policy
- Payment Options: Bank Transfer and Crypto
- For Questions: use our Livechat or Contact us Form
- Is Smart Device: YES
- Origin: Mainland China
- Model Number: TEM1325
- Condition: New
- Brand Name: TEKAI
- CNC or Not: CNC
- Product name: woodworking cnc router 1325
- Working area: 1300x2500mm
- Spindle: 3.0/5.5/7.5/9.0 KW
- Transmission in X, Y axis: Gear Transmission
- Z axis transmission: Taiwan TBI Ball Screw Transmission
- Driver: Leadshine M860
- Motor: Stepper Motor NEMA34
- Traveling Positioning Accuracy: 0.03mm
- inverter: Fuling inverter
- Engraving speed: 25000 mm/min
Wood Stair Cnc Router Machine Cnc Router 1224 Cnc Milling Machine Parts Cnc Router 1200×1200 3d Mini Cnc Engraving Machine
The features of TEM1325:
1) The machines’ body is strong, rigid, high precision, reliable and durable.
2) Imported high precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
3) High quality Taiwan imported linear guide has much longer life 10 times of life-time than round guide; it is stable and hard to distort.
4) Using well known domestic brands of water cooling brushless spindle, low noise, and strong cutting ability, to ensure the long time working.
5) High performance driven motor to ensure that the machines high speed and accuracy.
6) The Mach3 control system is a very popular control system with high quality.
7) Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
The detailed parts:
The parameter of the TEM1325:
|
Model |
TEM1325 woodworking cnc machine |
|
Working Area |
1300×2500x250mm |
|
Spindle Motor |
3.0 kw water cooling spindle |
|
Working Mode |
Leadshine driver and stepper motor |
|
Drive and transmission |
Rack and pinion on x,y axis ,z axis Taiwan TBI ball screw |
|
Table Surface |
T-slot table/Vacuum table |
|
Frame |
Cast iron steel body |
|
Motion Positioning Accuracy |
± 0.03/300mm |
|
Repositioning Accuracy |
± 0.05mm |
|
Max Motion Speed |
50,000mm/min |
|
Max Engraving Speed |
30,000mm/min |
|
Rotating Speed of Spindle |
2,4000rpm |
|
Dictate Format |
G code, *.u00, *.mmg, *.plt |
|
Collect |
ER20 |
|
Operating Voltage |
3phase 380v/220v 50Hz-60HZ |
|
Software |
Artcam software |
|
Lubrication System |
Oil lubrication system |

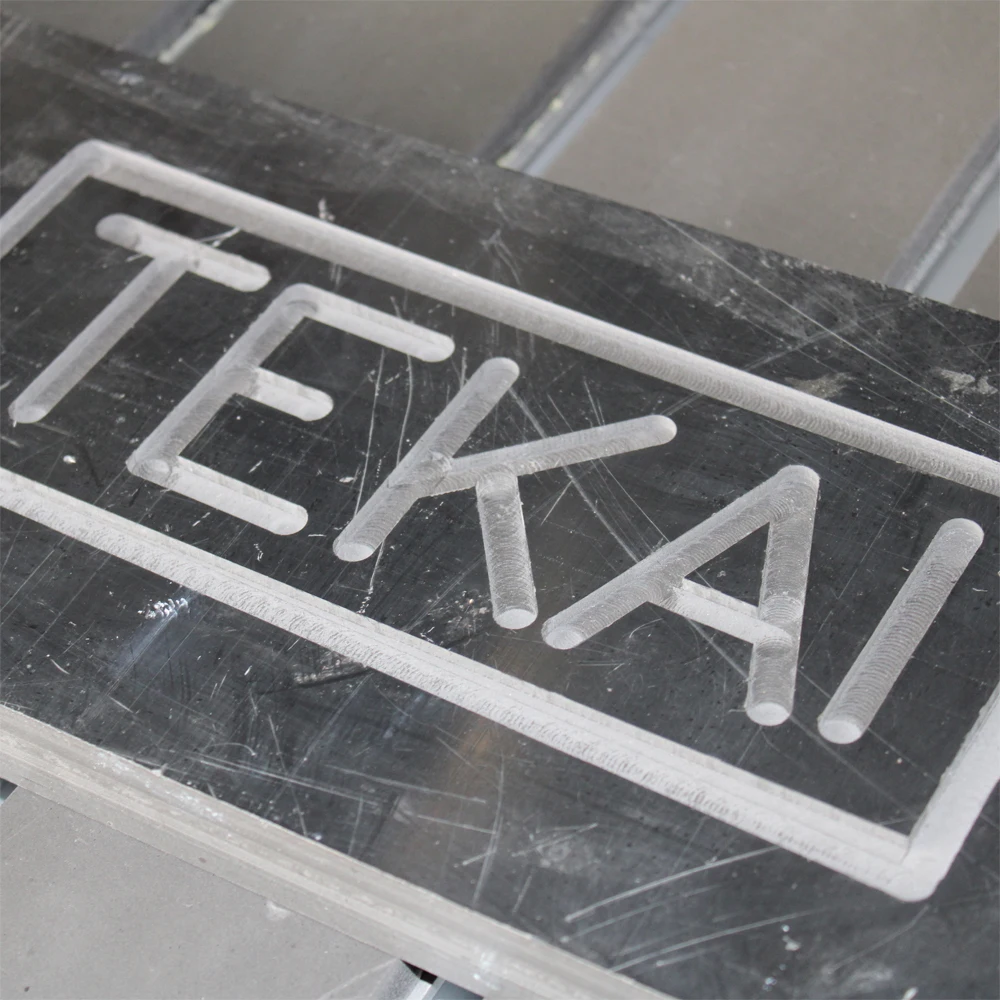

The samples from TEM1325:
The service of us:
Guarantte:
1. Two years for the whole machine. Within two years under normal use and maintenance, if something is wrong with the machine, you will send to you for free.
4. Besides, you will be able to get free training advice about how to install the spare parts. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc.
FAQ:
Q1: How do you get the best price?
A: As you may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.
Please tell me what’s material you want to cutting or engraving ?
And what’s MAX size of carved material ?
Then I wil recommand the most suitable model and the best price for you.
Q2: In case of failure,how to do?
A: Call us—-our enginners are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free—For more information,please contact us
The CD and operation manual—-It show the most common failure in working processing and how to solve this problems.
Q3: Are you trading company or manufacturer ?
A: We are factory.
Q4: How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to quantity.
