router bit 3 axis cnc router price cnc router automatic 3d wood carving cnc router cnc router 4060 for cnc
Original price was: 10,890.00€.8,470.00€Current price is: 8,470.00€. exc. 19% Vat
- 14 days Return and Refund - check our Return and Refund Policy
- Shipping Time: 7 - 10 Business Days Worldwide - check out our Shipping Policy
- Payment Options: Bank Transfer and Crypto
- For Questions: use our Livechat or Contact us Form
- Controller: MACH3
- Is Smart Device: YES
- Origin: Mainland China
- Model Number: TEM1325-R
- Condition: New
- Brand Name: TEKAI
- CNC or Not: CNC
- Product name: TEM 1325-R cnc machine
- Spindle: 3.0kw water cooling spindle
- Transmission in X, Y axis: Ball Screw Transmission
- Motor: stepper motor
- Driver: Leadshine driver
- Engraving speed: 38000mm/min
- Cutting speed: 25000mm/min
- Working precision: 0.01mm
- power: 4.5kw
- Colour: can be customerized
router bit 3 axis cnc router price cnc router automatic 3d wood carving cnc router cnc router 4060 for cnc
Feature
1) Adopt original TBI ball screws, Taiwan HIWIN linear guide.
2)The adoption of the breakpoint memory. Guarantee in the accident (power off ) or the next day can proces.
3)Gantry movement ,cast steel ,it is durable and high accuracy.
4)All the holes are made by cnc machine, it can guarantee the machining accuracy.

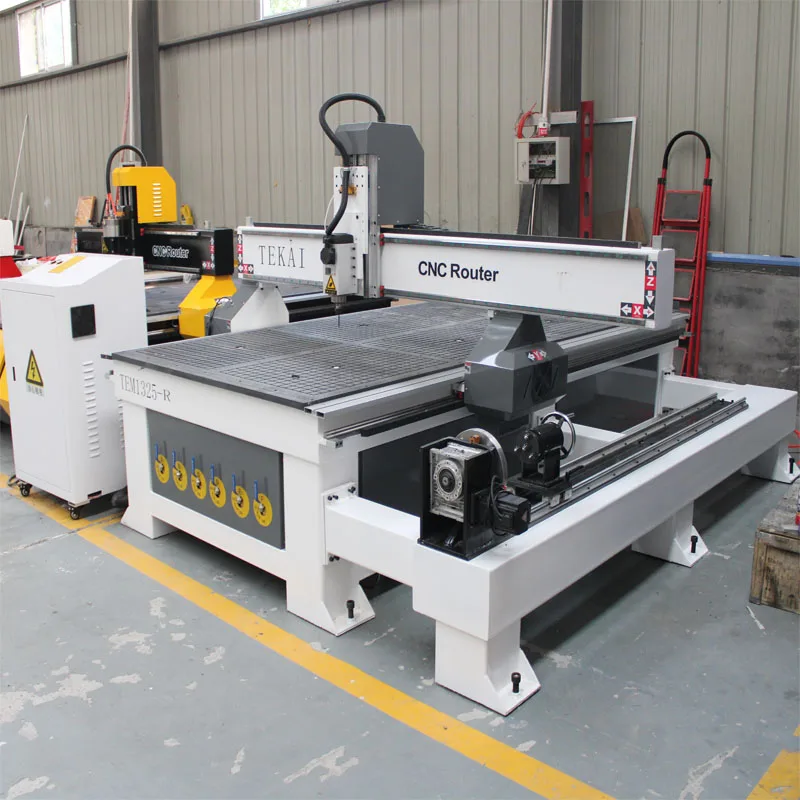

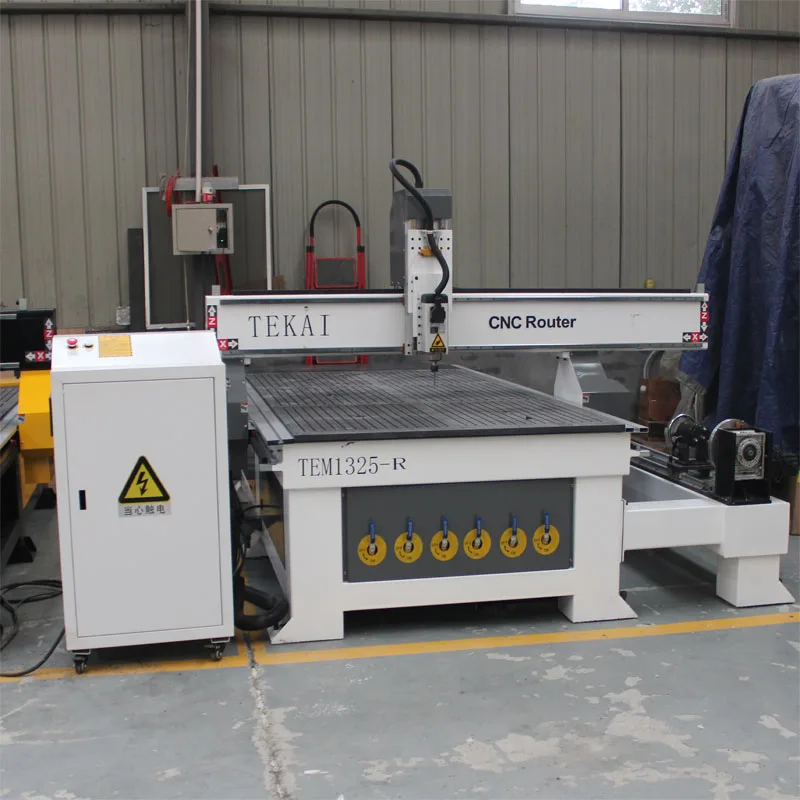

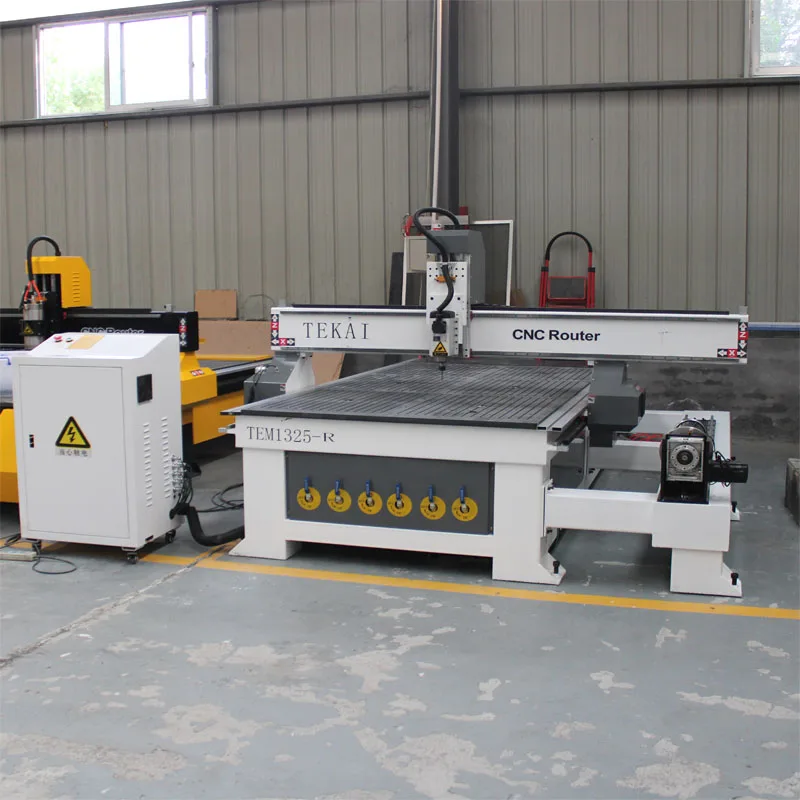

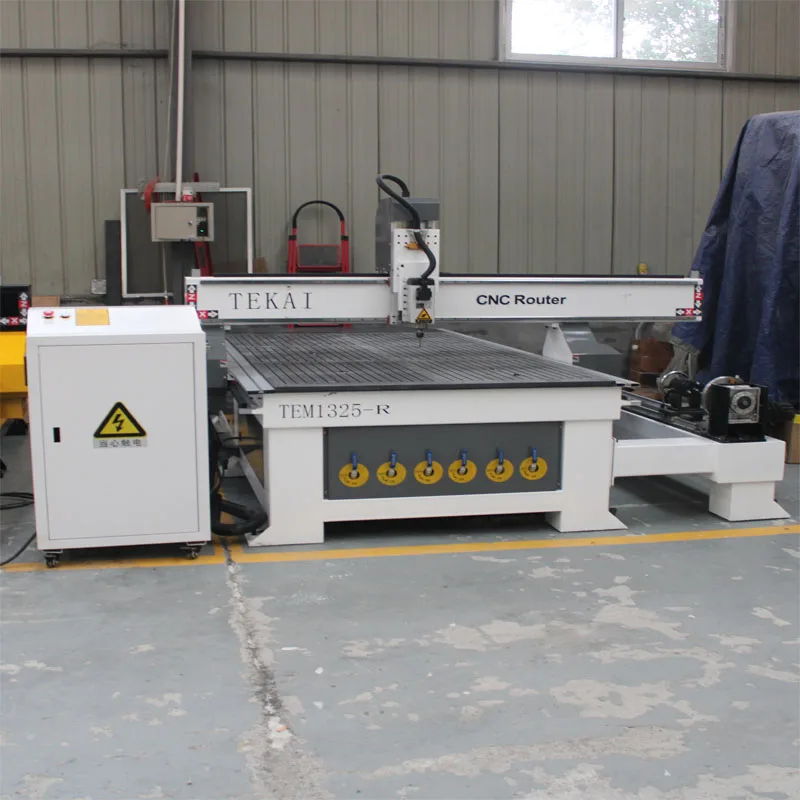

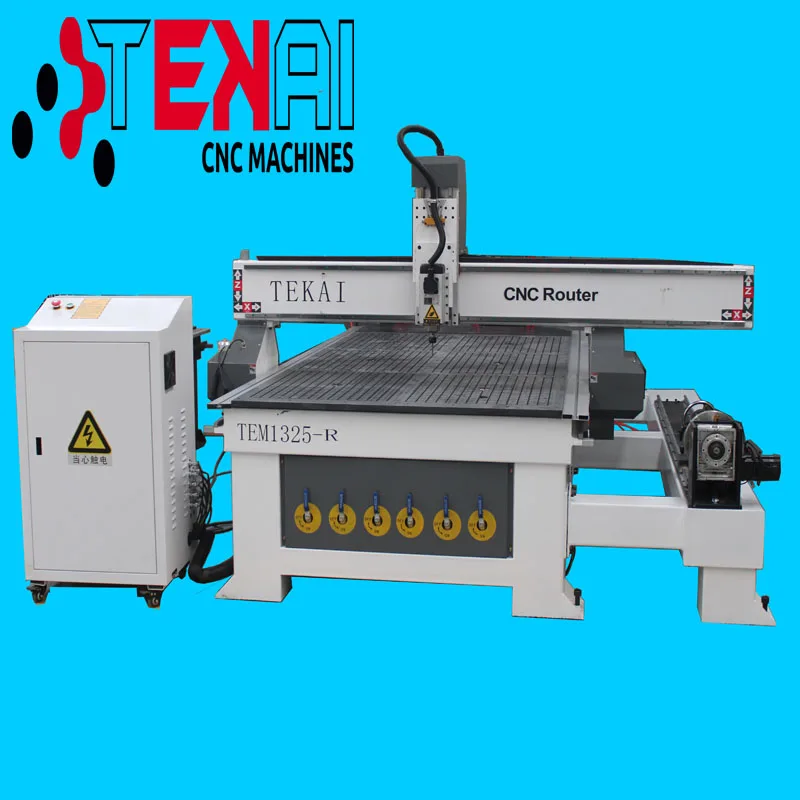

TEM1325-R cnc router
|
Model |
TEM1325-R |
|
Working Area |
1300*2500*200mm |
|
Traveling Positioning Accuracy |
±0.03/300mm |
|
Repositioning Accuracy |
±0.03mm |
|
Rotary axis |
300mm diameter, 2000mm length |
|
Table |
T-slot Table |
|
body |
heavy duty frame body |
|
Power of spindle |
3.0kw water cooling spindle |
|
X,Y,Z axis |
Taiwan HIWIN Square rails |
|
Max. Power Consumption |
(Without Spindle) 2.5kw~3Kw |
|
Max. Rapid Travel Rate |
33000mm/min |
|
Max. Working Speed |
25000mm/min |
|
Spindle and Power |
air or water cooling spindle ,power optional |
|
Spindle Speed |
0-24000RPM |
|
Drive Motors |
stepper or servo motor |
|
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
|
Command Language |
G Code |
|
Operating System |
Mach3 with USB |
|
Computer Interface |
USB |
|
Flash Memory |
128M(U Disk) |
|
Collet |
ER25 |
|
X,Y Resolution |
<0.01mm |
|
Software Compatibility |
Type3/UcancameV9/Artcam Software and so on |
|
Running Environment Temperature |
0 – 45 Centigrade |
|
Optional parts |
1. air cooling spindle 2. Other control system:DSP, Syntec etc 3. vacuum table with vacuum pump 4.Servo motors (China or Japan brand) 5.Dust collector |
Samples from CNC ROUTER
Certificate
Jinan TeKai Machinery Co., Ltd was located in high technology industry zone of Jinan,which specializes in manufacturing CNC and laser machines since 2005.
Our produces are wildely sold in many European and American countries. These products are very popular in these markets and have established a leading position in the carving machine field
our factory
Service
• 24 hours technical support by Email or Calling.
• English manual and CD video for machine using and maintaining.
• Hardware: 1 years on all parts (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
• Engineers available to service machinery overseas.
