fast speed 24000 rpm wood aluminum mould making machine 3d wood processing machine 4 axis cnc router engraver







Technical Parameters of 3d wood processing machine:

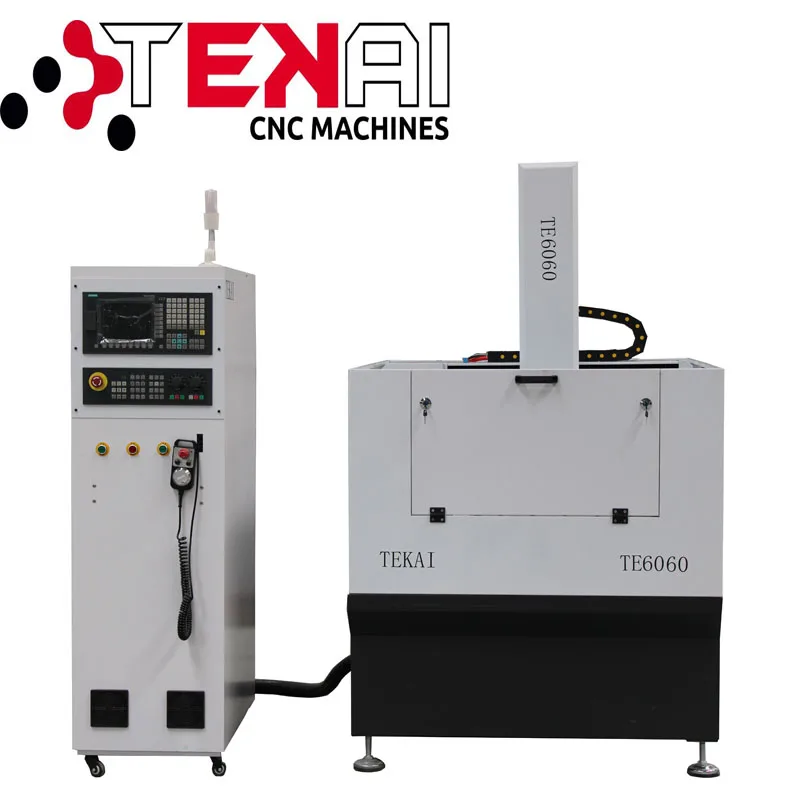

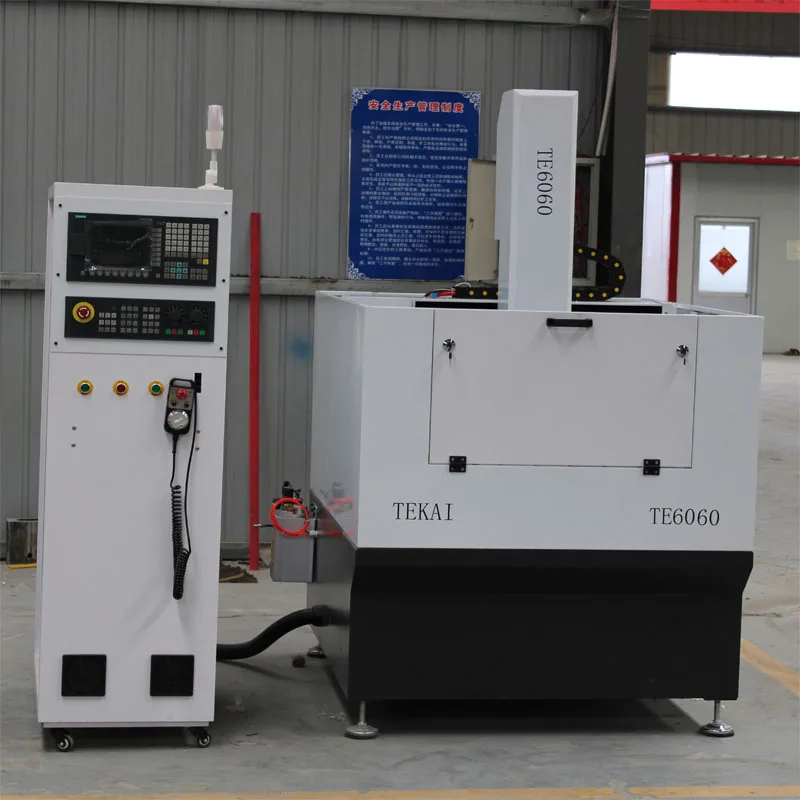

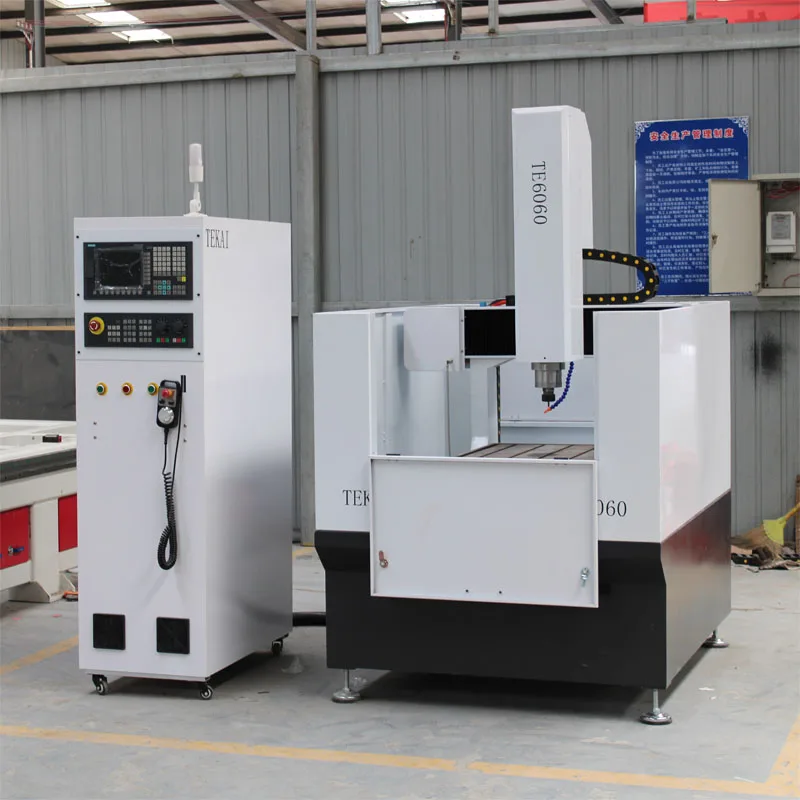

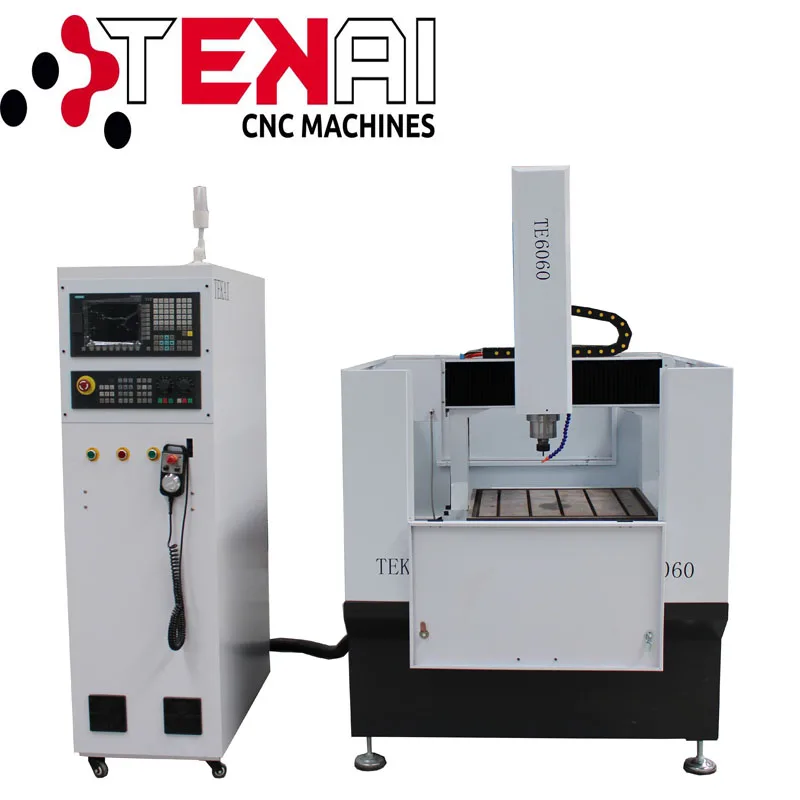

Model	TE6060
Body	Cast iron body
Spindle	1.5kw water cooling spindle
Transmission	Taiwan TBI ball screw transmission
X Y Z working size	600×600×200mm
Movement style	Table moving
Spindle speed	24000rpm
Motor	450B stepper motor
Driver	Leadshine M860 driver
Control system	Mach3 controller
Inverter	Fuling inverter
Table	T-slot table
Rails	Taiwan Hiwin 20mm rails
Repeat reposition accuracy	±0.005mm





Product features of 3d wood processing machine:



1. The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.

2. Heavy loading, non deformation, adopting imported double nut screw to ensure the engraving speed.

3. Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.

4. Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc

5. Available for continuous work for a long time.



Samples from cnc milling machine TE6060:

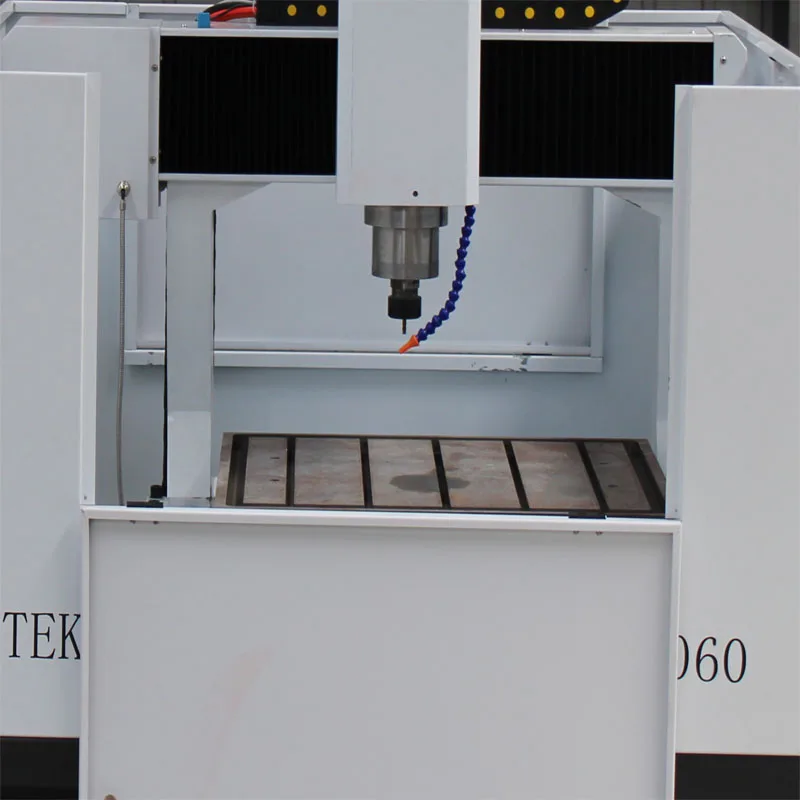

Detailed parts:





Services for our customers:

Pre-sale services



     1) Provide the free consultation of the equipment.

     2) Provide the standard device and the flow chart.



Services during the sales

      1) Inspect the machine before leaving the factory.

      2) Oversea install and adjust the equipment.

      3) Train the first-line operator.



After sale services

      1)  24 hours online service.

      2) Provide technical exchanging.
