3d cnc milling machine, 4 axis cnc router engraver, cnc router 2030

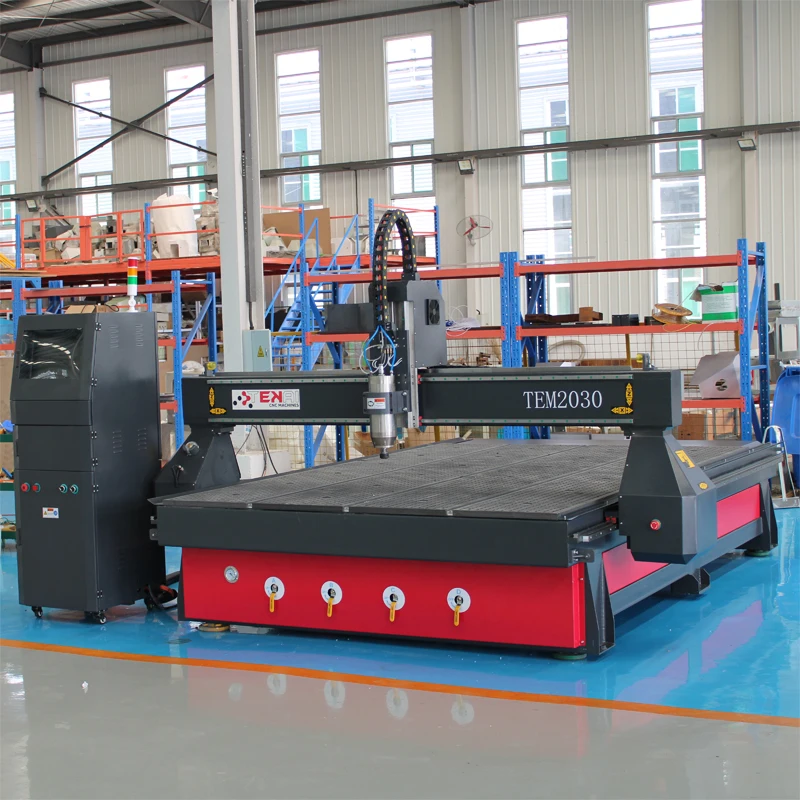

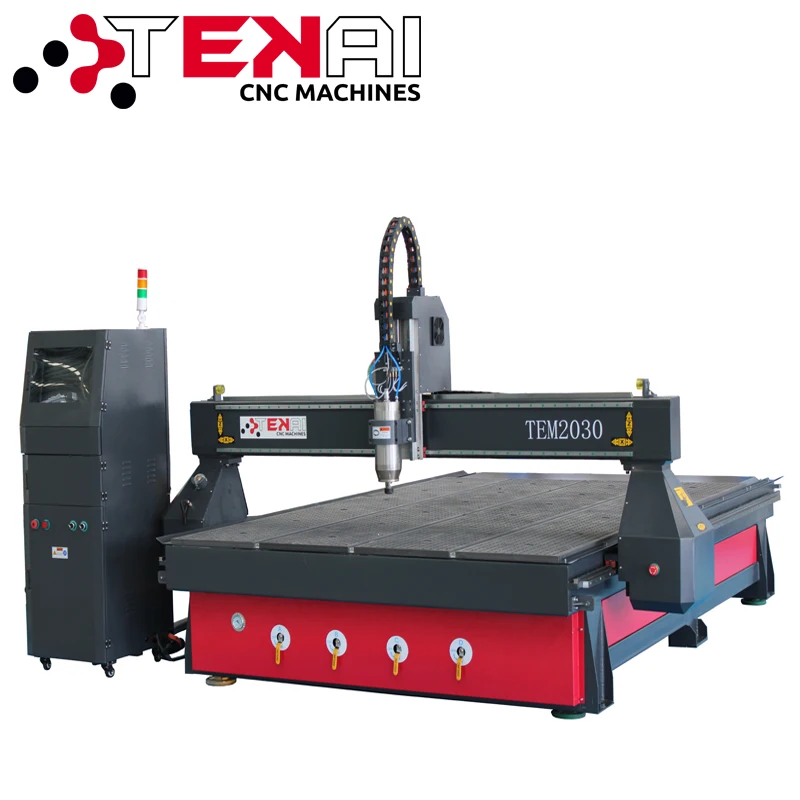

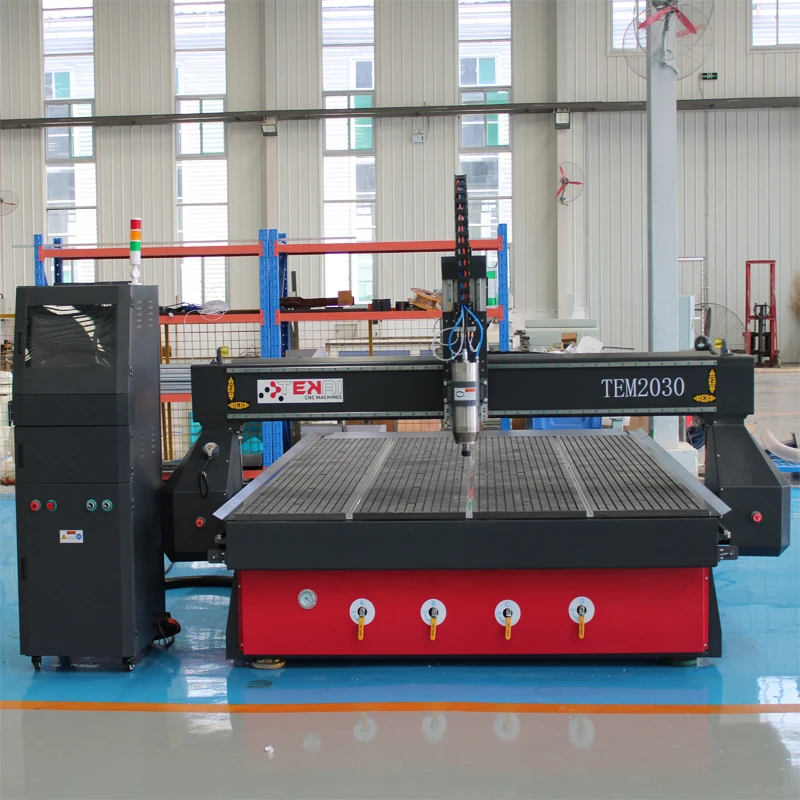

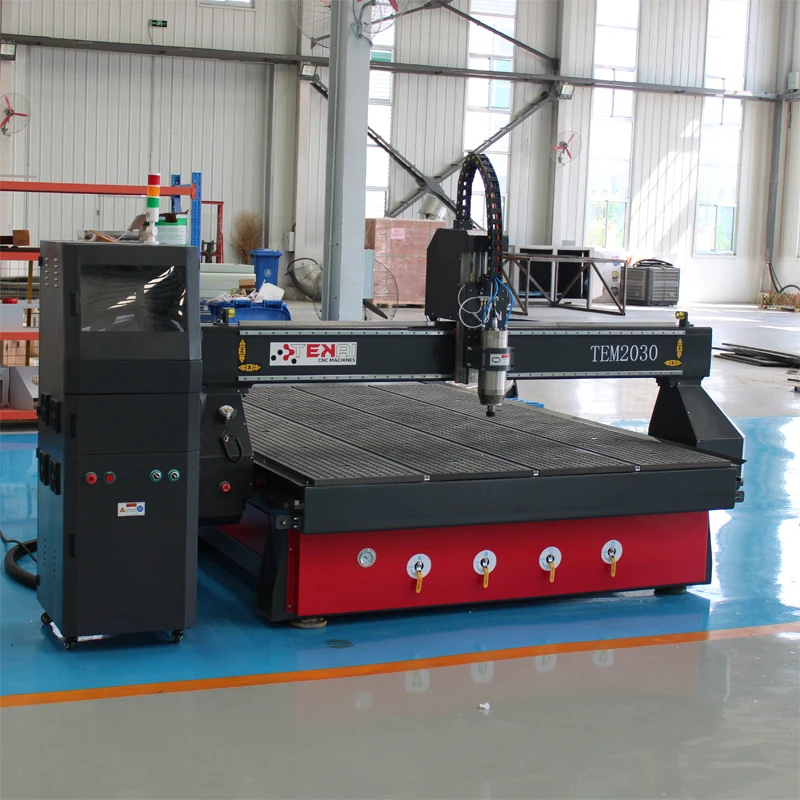

The cnc router 2030 picture show:







The Features of cnc router 2030:



1)  Whole machine is welded with seamless steel structure, which is high temperature annealing and

vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

2) Three axes adopt Taiwan brand linear guide rail with high precision.

3) Z axis adopts imported  Taiwan made ball screw, so high precision and long life time using are assured.

4) X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.

5) Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam, etc.

6) Manual/automatic oil-injection system allows the machine maintenance mush easier.

The detailed parts of cnc router 2030:

1. Higher quality auto oil lubracation:







2. Tool sensor:







3. Higher quality presss button:

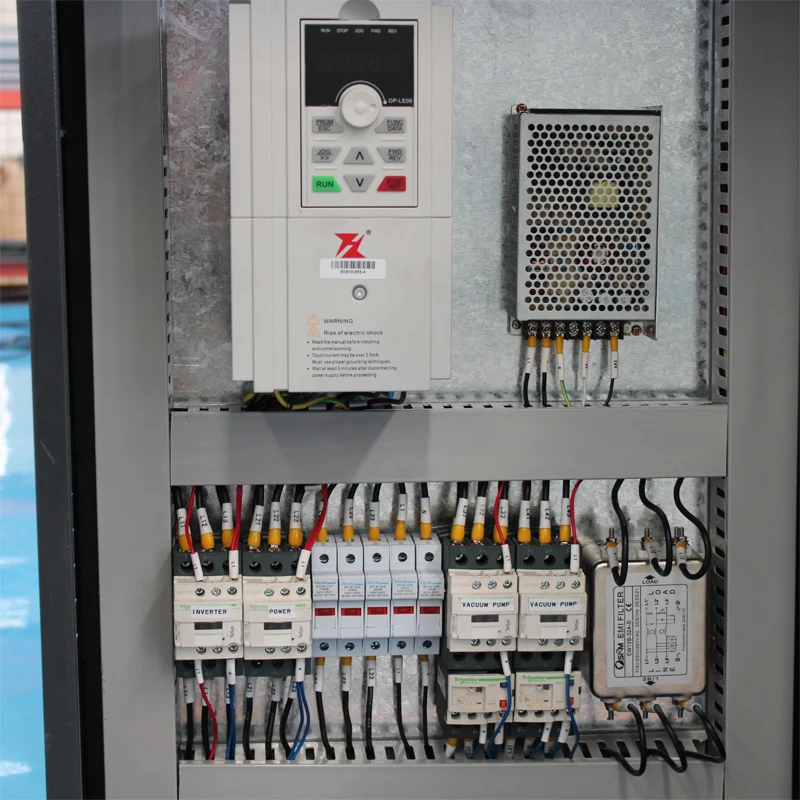

4. Control box:





5. Three color high quality cable:







Technical Parameters of cnc router 2030:



Working Area	2000x3000x200mm
Traveling Positioning Accuracy	±0.03/300mm
Repositioning Accuracy	±0.03mm
Table	T-slot Table
Power of spindle	3.0kw water cooling spindle
X,Y,Z axis	Taiwan HIWIN Square rails
Max. Power Consumption	(Without Spindle)  2.5kw~3Kw
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Spindle Speed	0-24000RPM
Drive Motors	stepper or servo motor
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G Code
Operating System	Mach3 with USB port
Computer Interface	USB port
Flash Memory	128M(U Disk)
Collet	ER25
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9/Artcam Software and so on
Optional parts	1. air cooling spindle  2. Other control system:DSP, Syntec etc  3. vacuum table with vacuum pump  4.Servo motors (China or Japan brand)  5.Rotay:   diamater 80mm,125mm,150mm,200mm,300mm  6.Dust collector

Samples picture show:



RFQ:

1) This is my first time to use this kind of TEM2030 cnc milling machine , is it easy to operate?

 here are English manual and guide video showing how to use the cnc wood router.

If you still have difficulties operating the machine, we can solve your problems through phone or skype.

2) If there is something wrong with the machine after I ordered it, how could I do?

Free parts send to you during machine warranty period if machine went wrong.

Free after-sales service life for machine, please feel free to contact us if something is wrong with your machine.We offer 24 hours on line service each day, free technical support.

3) MOQ ?

Our MOQ is 1 set machine. We could send machine to the port of your country or your factory directly, please inform us your port or your detailed address.

After service:



1. One years quality guaranty, the machine with main parts(excluding the consumables)

   shall be changed free of charge if there is any problem during the warranty period.
